Shocking Angle Errors Crushing Marine Lifts Fix Bridle Slings Now

You might think a basic sling handles your yacht lift just fine—until a subtle angle error sends the load swinging, potentially costing thousands in hull repairs. But what if bridle slings, with their multi-leg precision, could eliminate those hidden risks entirely? Dive in to uncover the exact calculations and custom tweaks that transform chaotic marine hoists into flawlessly controlled operations, saving your team from disaster.

What is a Bridle Sling and Why It Prevents Angle Errors

Imagine you're out on the water, overseeing a yacht lift, when suddenly the load shifts unexpectedly, causing the whole operation to wobble dangerously. Those improper angles in your lifting setup aren't just inconvenient—they can lead to serious accidents or damage to expensive equipment. That's where a bridle sling steps in as your reliable ally, designed specifically to keep things steady and safe during marine operations.

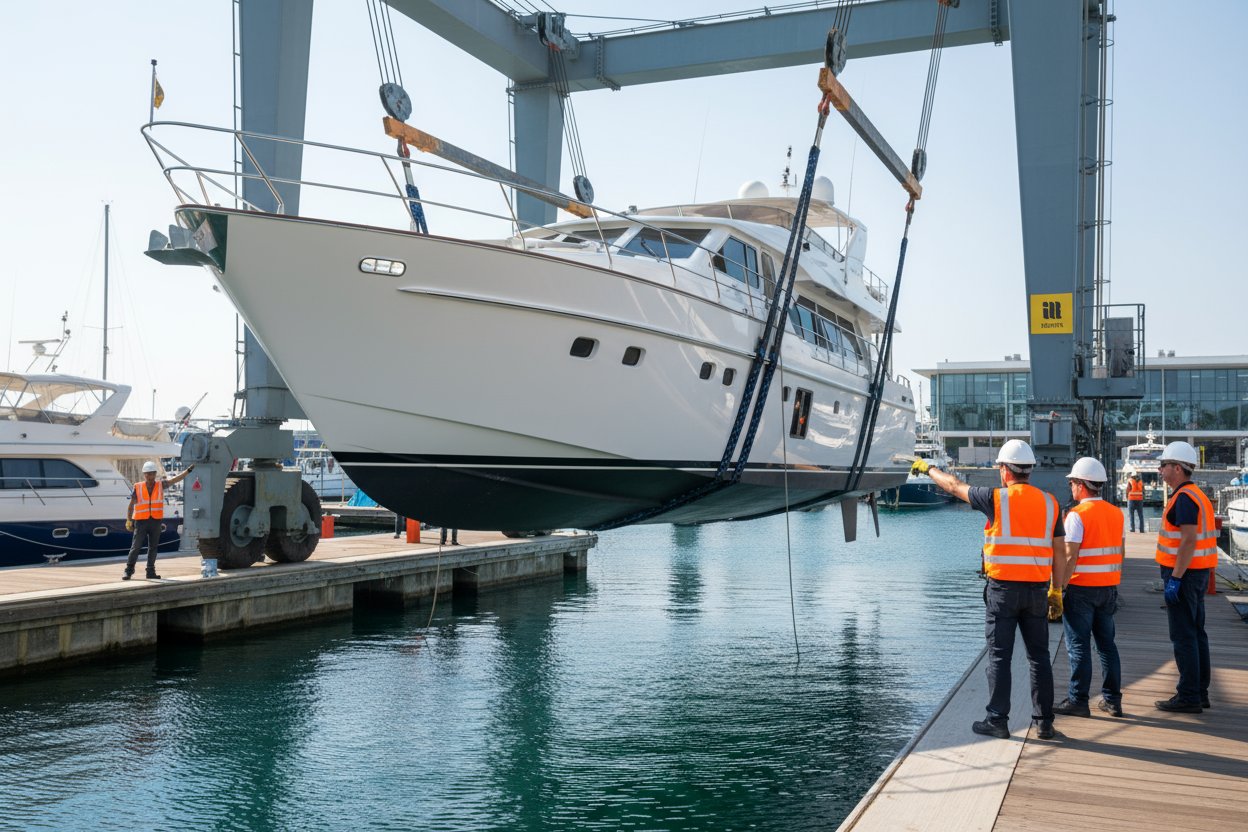

At its core, a bridle sling is a lifting assembly made up of multiple rope legs that connect to a central master link at the top, spreading out to multiple attachment points on the load below. Think of it like the reins on a horse bridle, guiding and balancing the weight evenly so it doesn't swing or tip. This setup is essential for distributing the load's weight across several points, which promotes stability and reduces stress on any single area. In marine environments, where humidity, salt, and unpredictable waves add extra challenges, this even distribution prevents the kind of torsional forces that could otherwise cause ropes to fray or snap under pressure.

Now, you might wonder what exactly a bridle sling is used for in practice. It's primarily for securing and balancing heavy or irregular loads during hoists, ensuring the center of gravity stays aligned. Without it, common angle errors creep in—like when legs are too vertical, concentrating too much tension on the outer edges, or when they're splayed too wide, slashing the effective lifting capacity by up to 50% at extreme spreads. In yacht lifts, for instance, if the sling legs form an angle less than 30 degrees from horizontal, the load can bind and twist, risking hull damage. Bridle slings counter this by allowing you to adjust the leg angles for optimal balance, maintaining a working load limit that keeps operations smooth and secure. I've seen teams avoid near-misses on boat docks just by switching to these, turning chaotic lifts into controlled routines.

Getting the configuration right is key to leveraging these benefits, especially in balanced marine lifting. The number of legs determines how well the sling adapts to the load's shape. Double-leg bridle slings work great for straightforward two-point lifts, like raising engine parts, where symmetry keeps everything level without fuss.

These variations mean you can match the sling to your specific needs, whether it's a quick dockside adjustment or a major installation. Of course, what are the different types of bridle slings beyond legs? They come in various materials too, but we will touch on that later. First, understanding these basics sets the stage for proper rigging to calculate those critical leg angles and ensure your marine lifts stay error-free.

Mastering Bridle Sling Rigging: Design Principles and Leg Angle Calculations

Now that we understand the fundamentals of bridle slings and their role in preventing those risky angle errors, it's time to dive into the rigging side of things. Getting this right means your lifts in the marine world—whether hoisting a yacht or positioning deck gear—stay balanced and under control. At the heart of bridle sling rigging are a few key design principles that keep everything steady.

Load distribution starts with aligning the sling legs to share the weight evenly across the attachment points. This prevents any one leg from taking on too much strain, which could lead to slippage or failure. Then there's the center of gravity, that invisible sweet spot where the load naturally wants to balance. In rigging, you position the legs so the master link hangs directly above this point, creating a stable vertical line. Picture it like balancing a seesaw: if the pivot isn't centered, one side tips. For marine operations, where loads might shift with waves or tides, nailing this alignment avoids sudden jolts that could damage hulls or equipment. I've rigged setups on busy docks where ignoring the COG turned a simple engine lift into a heart-pounding scramble—lesson learned the hard way.

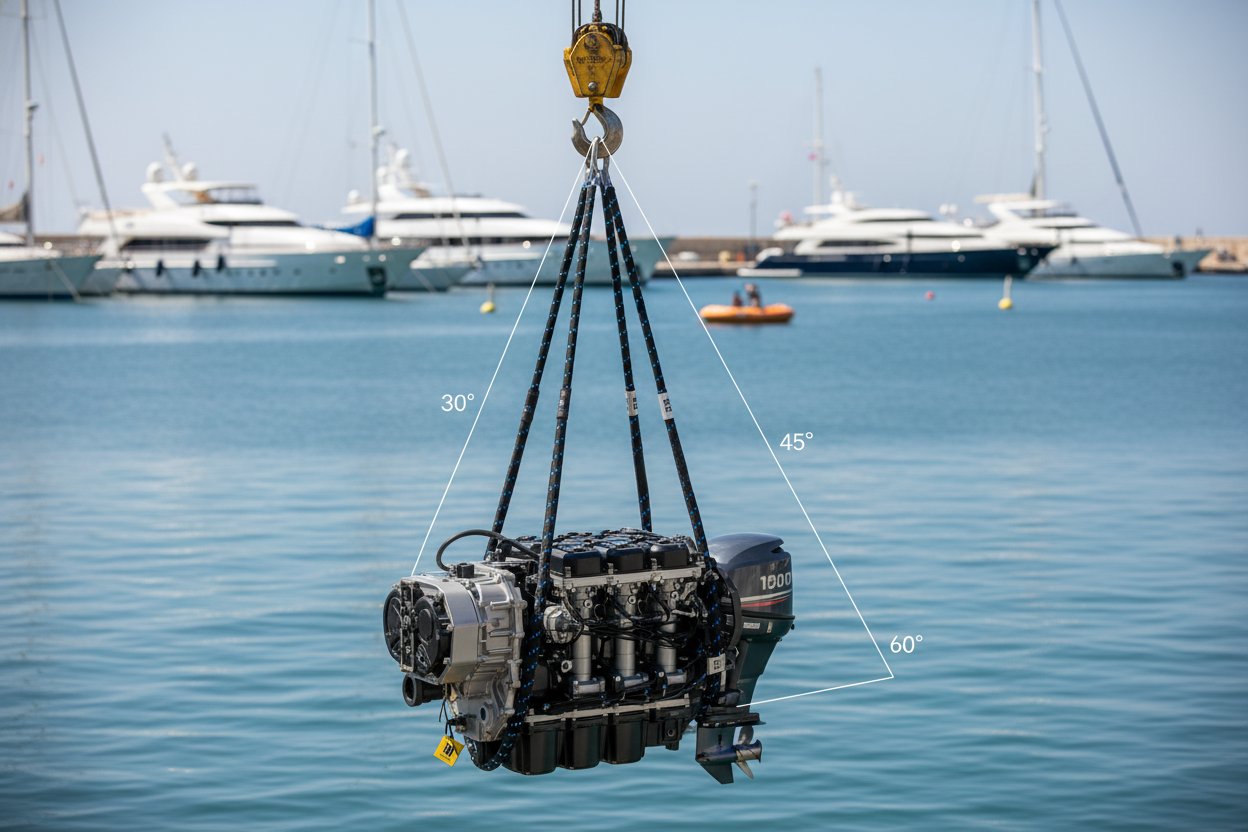

Next up, calculating safe leg angles is crucial for determining the working load limit, or WLL, which is the maximum weight the sling can handle safely at a given setup. The angle refers to the space between each leg and the horizontal plane; narrower angles mean more tension per leg. Common safe ranges are 30°, 45°, and 60° from horizontal—anything steeper reduces capacity sharply. At 60°, for example, the WLL might drop to about 50% of the vertical rating because the load pulls more sideways. To figure this out, you multiply the single-leg WLL by a factor based on the angle: roughly 1.0 at 0° (vertical, but impractical), 0.866 at 30°, 0.707 at 45°, and 0.5 at 60°. Manufacturers provide charts, but always factor in the total load divided by the number of legs. How do you calculate bridle sling capacity exactly? Start with the load weight, divide by the leg count, then apply the angle multiplier to each leg's rated WLL—ensuring no leg exceeds its limit. This keeps your marine lifts predictable, even with saltwater's sneaky wear on gear.

Unequal loads throw another curveball, especially in marine environments where gear might not be perfectly symmetric. Adjustment methods involve shortening or lengthening individual legs utilising adjustable fittings or custom lengths to level the setup. For instance, if one side of a yacht component is heavier due to added fittings, you tweak the shorter leg to match the angle on the lighter side, keeping the COG centred. Test this pre-lift by gently raising the load a few inches; if it tilts, readjust until it's plumb. Tools like come-alongs or turnbuckles make fine-tuning easier without compromising the rigging's integrity.

These steps ensure your bridle sling rigging holds up under real-world pressures. Once you've got the angles dialled in, picking the right materials and setups for those salty marine conditions will lock in even better results.

Choosing Bridle Lifting Slings: Materials and Configurations for Marine Use

With rigging mastered and those leg angles set just right, the next step is selecting bridle lifting slings that can withstand the relentless assault of saltwater, UV rays, and constant moisture in marine settings. You wouldn't outfit a yacht for open seas with flimsy gear, right? The materials and setups you choose directly impact how well your lifts hold up, preventing corrosion that could weaken the entire system over time. For yacht operations, where every hoist needs to be reliable amid slippery decks and unpredictable swells, focusing on durable, resistant options makes all the difference.

Optimal materials for bridle lifting slings in these environments prioritise corrosion resistance without sacrificing flexibility or strength. Nylon stands out for its excellent shock absorption and non-marking properties, which protect delicate hull surfaces during lifts. It stretches just enough under load to handle sudden movements from waves, yet rebounds reliably. Synthetics like nylon rope material take it further, offering superior strength-to-weight ratios and low stretch for precise control. These materials resist degradation from salt exposure far better than traditional options, extending the sling's lifespan in harsh conditions. Ever watched a rigger swap out a corroded chain after a single season? Synthetics cut that hassle, keeping your operations running smoothly.

What materials are bridle slings made from, exactly? Beyond nylon and high-performance synthetics, you'll find wire rope for its abrasion toughness in rough handling and chain for heavy-duty, heat-resistant tasks. However, these are less ideal for marine use due to rust risks. Each has trade-offs: nylon excels in flexibility but can absorb water, while synthetics maintain performance even when wet. For marine use, stick to those with UV inhibitors and chemical resistance to match the environment's demands.

Configurations for bridle lifting slings shine when tailored to yacht lifting and marine equipment installation, where loads vary from sleek hulls to bulky outboard motors. The leg count adapts to the task's complexity, ensuring even weight sharing across uneven surfaces. Double-leg setups suit straightforward yacht keel alignments, keeping the lift level with minimal sway. Triple-leg versions handle asymmetrical gear like propellers, offering three-point grip to counter tilts from tidal currents.

Types of bridle lifting slings by legs find specific marine applications that boost efficiency. Quad-leg designs tackle full vessel raises in dry docks, spreading tension to avoid pressure points on fibreglass. These choices not only match the job but also comply with safety standards, making inspections straightforward. In one dockside project I recall, switching to a triple-leg synthetic sling transformed a wobbly engine install into a steady affair, saving hours of fiddling.

Selecting these elements sets a solid foundation, but pairing them with the right hardware—like sturdy master links or protective thimbles—ensures the whole assembly performs without hitches in tough marine scenarios.

Hardware Selection and Custom Solutions for Effective Bridle Slings

Pairing the right sling materials with solid hardware turns a good setup into a foolproof one, especially when you're dealing with the constant pull of tides and the weight of yacht components. Consider this: without reliable fittings, even the strongest bridle lifting slings can fail at the connections, leading to slips that no one wants on a busy marina deck. Selecting these pieces thoughtfully ensures your rigging holds firm, distributing forces evenly and keeping operations safe.

Essential hardware forms the backbone of any secure bridle sling rigging. Master links act as the central hub where all legs converge, forged from high-grade alloy steel like Grade 80 or 100 to handle extreme loads without deforming. They connect directly to the hoist or crane, providing a single, robust attachment point. Hooks come next—eye hoist hooks for permanent setups or self-locking ones that grab loads without accidental release, preventing drops during swings. Thimbles protect rope ends from crushing, maintaining their shape and strength around sharp bends, while end fittings like shackles or ferrules secure the legs to the load, resisting abrasion from rough marine gear. Choosing these based on the sling's WLL and environmental exposure means no weak links in the chain. I once watched a team on a repair dock improvise with mismatched hooks, and it nearly turned a routine propeller lift into a disaster—proper selection avoids that every time.

For marine needs, iRopes OEM steps in with customisation that goes beyond off-the-shelf options. Our OEM and ODM services let you tailor bridle slings to exact specs—selecting diameters from 1/2 inch for lighter yacht tasks up to 2 inches for heavy installations, or adding reflective elements for low-light visibility. Certifications like ISO 9001 back every piece, confirming compliance with ASME B30.9 standards for slings. What are the different types of bridle slings available through this? Beyond leg counts, you get variations by material integration, like nylon-wrapped synthetics for flexibility or UHMWPE cores for low-stretch precision in wave-prone areas. We even incorporate customer branding on fittings, with IP protection to keep designs proprietary. This personalisation shines in yacht lifts, where a custom quad-leg setup might include padded thimbles to cradle hulls gently.

Installation best practices keep everything running smoothly during equipment handling. Start by inspecting all hardware for cracks or wear under good lighting—salt air accelerates corrosion, so rinse with fresh water post-use. Align the master link over the load's centre of gravity, attaching legs at balanced points with even tension; use a tag line to control sway as you raise. For yacht lifts, position slings to avoid stress on weak spots like windows or fittings, lifting slowly to monitor for shifts. In one installation I helped with, following these steps cut setup time in half while boosting crew confidence—no more second-guessing angles mid-hoist.

Putting these elements together not only fixes those angle pitfalls but sets the stage for lifts that prioritise safety across every marine job.

In the demanding world of marine lifts, improper angles can spell disaster, but bridle slings offer a proven fix by ensuring balanced load distribution and stability. From double-leg setups for simple yacht maintenance to quad-leg designs for complex hull elevations, these configurations—paired with precise bridle sling rigging—counteract common errors through calculated leg angles (30° to 60°) and adjustment methods for unequal weights. Selecting corrosion-resistant materials like nylon or synthetics for bridle lifting slings, along with essential hardware such as master links and thimbles, enhances safety in yacht lifting and equipment installation. iRopes' custom OEM solutions, backed by ISO 9001 certification, deliver tailored performance to elevate your operations.
