Description
UA24D-52 8 is core and cover UHMWPE double braided rope which is lightweight but strong.This quality rope is low stretch owing to pre-stretched and heat-setting . iropes' Special Coating enhances abrasion resistance and provides color options scoring 15% better than other coating in the marketing for abrasion resistance.
Material: UHMWPE/UHMWPE
Construction:Double braided
Application:yacht racing,cruising ,off-road sports.....
Specification
--Elastic elongation:0.97%
---------More specifications
| Diameter (mm) | Breaking Strength (Kg) | Weight Per Meter (Gram) | Item Number |
| 1.1 | 85 | 1.1 | YR001.1013 |
| 1.2 | 100 | 1.2 | YR001.2059 |
| 1.4 | 157 | 1.4 | YR001.4012 |
| 1.5 | 166 | 1.5 | YR001.5081 |
| 1.7 | 252 | 2.0 | YR001.7001 |
| 1.8 | 220 | 1.9 | YR001.8076 |
| 1.9 | 310 | 2.4 | YR001.9004 |
| 2.0 | 351 | 2.9 | YR002.0007 |
| 2.2 | 380 | 3.6 | YR002.2002 |
| 2.3 | 435 | 3.2 | YR002.3019 |
| 2.5 | 500 | 4.1 | YR002.5011 |
| 2.8 | 620 | 5.7 | YR002.8004 |
| 3.0 | 640 | 6.7 | YR003.0012 |
| 4.0 | 1,300 | 11.8 | YR004.0027 |
| 4.2 | 1,560 | 13.3 | YR004.2001 |
| 5.0 | 1,600 | 14.6 | YR005.0081 |
| 5.5 | 2,575 | 19.7 | YR005.5010 |
| 6.0 | 3,300 | 22.0 | YR006.0036 |
| 6.3 | 3,500 | 23.0 | YR006.3015 |
| 7.0 | 4,800 | 32.0 | YR007.0010 |
| 8.0 | 6,100 | 42.0 | YR008.0035 |
| 9.0 | 8,200 | 51.9 | YR009.0022 |
| 9.5 | 8,700 | 58.2 | YR009.5074 |
| 10.0 | 9,500 | 63.7 | YR010.0034 |
| 11.0 | 11,000 | 78.0 | YR011.0016 |
| 12.0 | 12,900 | 86.0 | YR012.0019 |
| 13.0 | 14,900 | 95.0 | YR013.0005 |
| 14.0 | 16,500 | 123.1 | YR014.0012 |
| 16.0 | 19,600 | 165.0 | YR016.0011 |
| 18.0 | 25,600 | 205.2 | YR018.0016 |
| 19.0 | 28,500 | 228.0 | YR019.0048 |
| 20.0 | 32,000 | 253.0 | YR020.0011 |
| 22.0 | 40,000 | 308.9 | YR022.0003 |
| 24.0 | 48,000 | 365.0 | YR024.0006 |
| 26.0 | 53,000 | 427.7 | YR026.0002 |

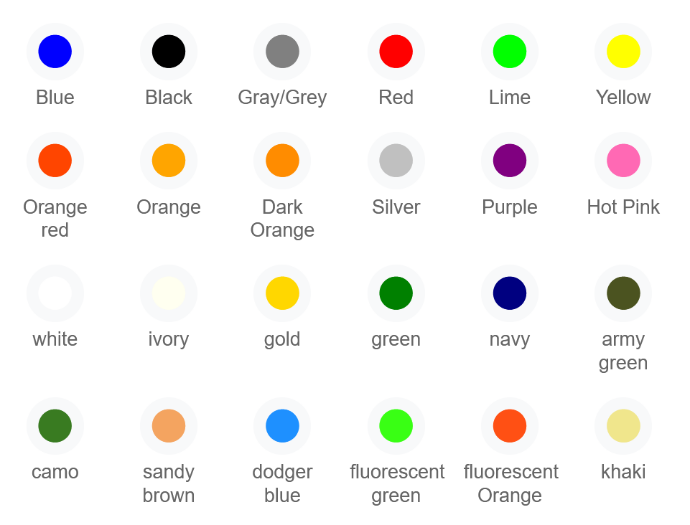

--Available color
Features and Benefits
━Abrasion resistant
━Lightweight
━Low elastic elongation
━Does not absorb water so floats and remains light weight
━Similar elastic elongation to wire rope
━High strength
━Stiff and round
━Wire rope replacement
