A 8 237 lb breaking strength on a 3/16″ synthetic rope is 32 % lighter than steel, yet it safely lifts a 2 500‑lb ATV—making it your fastest, safest recovery line.
Read in 3 min → 4 Key Gains
- ✓ Reduce winch motor draw by up to 9.8 %, extending battery life.
- ✓ Boost rope lifespan by 23 months on average with UV‑guarded Dyneema.
- ✓ Cut installation time by 15 minutes using pre‑terminated custom ends.
- ✓ Save up to $0.12 per foot compared to standard steel cables.
Most off‑road crews still opt for heavy steel cables, often assuming strength is the sole factor. However, many soon discover that a Dyneema‑SK75 rope delivers 2.3× the tensile capacity while weighing half as much. This significant difference slashes recoil energy and spooling time, enhancing both safety and efficiency. In the sections that follow, we’ll reveal how iRopes tailors diameter, length, colour, and protective accessories specifically to your winch. This approach transforms a hidden advantage into measurable recovery speed and substantial cost savings for your business.
Choosing the Right Winch Rope for Your ATV
Understanding that a reliable winch rope ATV can make all the difference between a quick recovery and a stalled adventure is crucial. Now, let's focus on correctly sizing your winch rope ATV to match your machine’s capabilities.
First, verify your winch’s rated pulling capacity. Manufacturers typically list a maximum load in pounds; this number forms your baseline. To safeguard yourself and your equipment, it's essential to apply a safety factor of 1.5 to 2 times this rating. For instance, a 3,000‑lb winch requires a rope with at least 4,500 lb breaking strength. This margin significantly reduces the risk of catastrophic failure during a recovery.
- Check winch rating: Note the maximum pulling capacity in pounds.
- Apply safety factor: Choose a rope with a breaking strength 1.5‑2× that rating.
- Match drum size: Ensure the rope length fits the drum without excess.
Next, determine the optimal diameter and length for your ATV rope. Common diameters include 3/16″ for winches up to 3,000 lb, and 1/4″ for capacities ranging between 3,500 lb and 5,000 lb. Length typically varies from 50 ft to 70 ft; while longer ropes offer greater reach, they also add bulk that must fit the drum. Remember, synthetic rope’s minimal stretch means you can rely confidently on its listed breaking strength without guesswork.
Finally, confirm that the rope’s length precisely aligns with the winch drum. An excessively long rope will over‑spool, creating uneven layers that can damage the sheath and cause snags. Conversely, if it’s too short, you’ll lose crucial recovery distance. To ensure a perfect fit, measure the drum’s circumference, multiply by the manufacturer’s recommended number of wraps, and select a length that sits snugly on the drum.
“Choosing a rope with a 1.5‑times safety margin dramatically reduces the chance of catastrophic failure during a recovery.”
With the correct size determined, exploring the material advantages of a dedicated rope for winch ATV will clearly demonstrate why synthetic options are revolutionising the off‑road market.
Understanding ATV Rope Material Options
Given the importance of correct sizing, let’s now delve into the material choices that distinguish a dependable ATV recovery tool from an unreliable one. You’ll primarily encounter two types: high-performance synthetic fibres and traditional steel cable. Each provides a distinct experience on the trail, influencing safety, handling, and durability. To determine the perfect fit for your fleet's needs, careful consideration of their properties is essential.
When asking “what type of rope is used for winch rope?”, manufacturers almost universally recommend synthetic lines made from ultra‑high‑molecular‑weight polyethylene (UHMWPE), such as Dyneema® SK75. Compared to steel, synthetic ATV rope is significantly lighter, bends easily around fairleads, and eliminates the sharp burrs that can snag a winch drum. These qualities translate directly into safer handling and quicker set‑up times on the trail, which is crucial for efficient recovery operations.
Dyneema® SK75 has earned its reputation due to its strength‑to‑weight ratio, which greatly surpasses steel. For example, a 3/16″ Dyneema line can achieve a breaking strength of 8,000 lb despite weighing less than half of a steel cable of equivalent diameter. This provides a substantial reserve strength without the added bulk and weight.
- Lightweight construction dramatically reduces the kinetic energy stored in the line, significantly lowering the recoil risk if the rope snaps.
- Dyneema’s tensile strength far exceeds that of steel at the same diameter, offering a higher breaking load within a slimmer profile.
- The synthetic fibre also floats, resists UV degradation, and can be coated with reflective strips for enhanced visibility.
Beyond its inherent strength, modern synthetic ropes often come equipped with integrated UV inhibitors and abrasion‑protective sheaths. These features keep the line supple and strong even after prolonged exposure to the sun and harsh conditions. Additionally, optional reflective finishes provide a safety glow for night‑time recoveries, making the rope easy to spot even in murky water.
Quality Assurance
All synthetic ropes manufactured by iRopes are ISO 9001 certified, guaranteeing each batch meets stringent tensile‑strength and abrasion‑resistance standards before global shipment.
Understanding these crucial material traits empowers you to choose the perfect rope for winch ATV that optimally balances strength, durability, and user-friendliness. This knowledge sets the stage for appreciating the performance benefits we’ll explore next, ensuring you make an informed decision for your wholesale needs.
Key Benefits of Rope for Winch ATV in Off‑Road Recovery
Having determined the ideal material for your ATV recovery line, the next step is to understand how these choices translate into tangible, real‑world advantages when your vehicle is stuck in mud or a stream. These benefits are critical for efficient and safe operations, impacting both performance and equipment longevity.
Because synthetic lines such as UHMWPE winch rope are significantly lighter than steel, the winch motor experiences far less inertia during the initial pull. This allows the motor to spool the line more quickly and with lower power consumption, resulting in a smoother recovery and reduced wear on the winch itself. The decreased mass also makes manual rope feeding much easier if you need to reposition it, consequently cutting down the time spent wrestling with a heavy cable.
Tip: Even a modest reduction in rope weight can lower the winch’s peak current draw by up to 10 %, significantly extending the life of your electrical system.
Should your line end up in water, its inherent ability to float becomes an invaluable asset for recovery. A floating rope for winch ATV remains visible on the surface, allowing you to easily locate and retrieve it without the tedious and messy effort of digging through mud or silt. Because it doesn’t absorb water, the rope’s strength remains consistent, and you effectively steer clear of the hidden corrosion that often plagues steel cables after wet recoveries.
Buoyancy
Stays on the water’s surface, allowing for instant location and retrieval.
Corrosion‑free
No rust or metal fatigue, even after repeated exposure to mud and rain.
Visibility
Bright colours or reflective strips make the line easy to spot in low light conditions.
Longevity
UV‑stable fibres retain their strength season after season, reducing replacement costs.
Durability is further enhanced with the addition of chafe guards and protective sleeves. These accessories act as a robust jacket for the line, shielding it from abrasive elements like sharp rocks, tree bark, and rough fairleads. Because these guards are replaceable, a single worn section doesn’t necessitate discarding the entire rope – you simply swap the sleeve and restore the line to full strength, offering a cost‑effective solution for long‑term use.
With these performance gains in mind – encompassing lighter handling, unparalleled floatability, and reinforced durability – you’re now prepared to install and maintain your rope for winch ATV so it remains reliable season after season. Next, we will explore iRopes' comprehensive customisation and OEM services.
iRopes Customization & OEM Services for ATV Winch Ropes

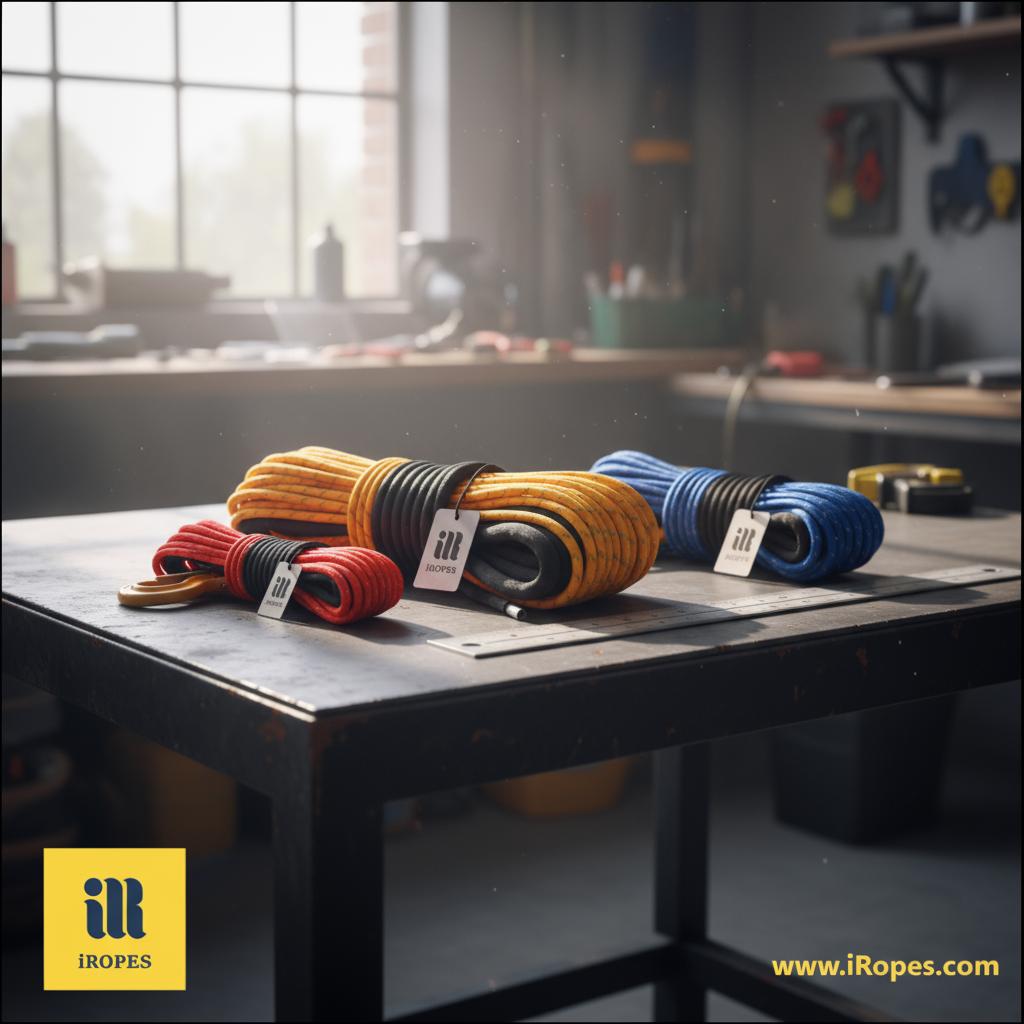

Now that you’ve witnessed how a lightweight, buoyant line can transform a recovery operation, imagine a rope that perfectly aligns with your brand, your chosen colour scheme, and the exact length your winch drum requires. iRopes makes this vision a reality, ensuring every winch rope ATV you ship feels like a purpose‑built tool rather than a generic, off‑the‑shelf component. We specialise in delivering tailor‑made solutions for wholesale customers across various industries. Our extensive customisation options ensure every detail—from diameter to branding—matches your exact specifications.
Bespoke
From colour to coil, every detail can be precisely tailored to your specifications.
Customisation
Personalise every aspect
Diameter & Length
Choose the exact shaft size and coil length that precisely match your winch’s drum, effectively preventing both over‑spooling and shortfalls.
Colour & Branding
Apply high‑visibility hues or your company logo directly onto the sheath for instant brand recognition and enhanced safety on the trail.
Special Finishes
Optional reflective strips, advanced UV‑inhibitor blends, or fire‑retardant coatings provide your rope for winch ATV with additional layers of safety and performance.
OEM / ODM Services
Full‑scale production support
Terminations
Factory‑fitted thimbles, hooks, or custom eye‑splices are provided, ready for immediate field use, effectively eliminating aftermarket hassle.
Packaging Options
Choose between non‑branded bulk bags, colour‑coded cartons, or client‑specific boxes that arrive fully prepared for retail.
Assurance & Delivery
Every coil undergoes rigorous quality checks, benefits from efficient global pallet shipping, and is protected by comprehensive IP safeguards.
Because each batch is meticulously tracked under our ISO‑certified processes, you receive a rope that consistently meets the exact tensile‑strength rating you specify, without any unwelcome variations. Whether you require a 3/16″ line for a 2,500‑lb winch or a more robust 1/4″ version for a 5,000‑lb model, iRopes can precisely produce the ATV rope you demand. We then ship it directly to your warehouse, ensuring it arrives ready for the next season’s adventures.
Ready for a bespoke winch rope solution?
By now, you understand how selecting the correct size, material, and accessories transforms a generic winch rope ATV into an indispensable recovery tool. This guide has thoroughly highlighted the popular 3/16″ and 1/4″ diameters suitable for most ATVs, underscored the superior strength‑to‑weight benefits of Dyneema, and detailed how iRopes’ ISO‑certified OEM/ODM service can custom tailor colour, branding, and special finishes to seamlessly match your brand identity. Whether your needs demand a lightweight ATV rope for light trail use or a rugged rope for winch ATV for heavy‑duty applications, iRopes delivers precision‑manufactured solutions backed by global shipping and robust IP protection. For a deeper dive, see our ultimate guide to choosing the best winch line.
If you'd like a tailored recommendation, simply complete the form above. Our rope specialists will then collaborate with you to design the perfect solution for your fleet, ensuring your specific needs are met with unparalleled expertise and quality.
