Custom 2‑inch boat rope supplied on reels from iRopes helps reduce project cost and arrives on time with dependable lead times.
What you’ll gain – ≈5 min read
- ✓ Tailored diameter, length and colour → a precise fit for your vessel’s load profile.
- ✓ ISO 9001‑backed quality → reliable safety margins versus generic off‑the‑shelf lines.
- ✓ Bulk pricing keeps costs competitive while maintaining short, predictable lead times.
- ✓ IP‑protected development → your brand identity remains exclusive worldwide.
Many skippers pick a generic boat rope reel, assuming any line will do. That choice can add weight, reduce safety, and waste deck space. What if you could order a reel of rope that matches your vessel’s colour, exact load rating, and length while fitting your budget? In the sections below, we show how iRopes’ OEM/ODM process makes that practical for wholesale buyers.
Understanding the boat rope reel
A reliable boat rope reel keeps your line organised, easy to deploy, and protected from unnecessary wear. Below, we explain what it is and how it helps you anchor, tow, and dock with confidence.
A boat rope reel is a storage and handling device that lets you deploy and retrieve rope with control. It keeps the line tidy, reduces chafe at contact points, and provides an orderly way to pay out rope when you need an anchor line, towing line, or docking line.
- Housing – typically 316 stainless‑steel or marine‑grade aluminium, protecting against saltwater.
- Spool – the core that winds rope evenly to avoid kinks and flat spots.
- Thimble – a reinforced eye that protects the splice and reduces localised wear.
- Rope line – the 2 inch boat rope, or your chosen diameter, supplied and wound cleanly.
When you operate the handle or engage a motorised windlass, the spool turns and the rope feeds through the fairlead. With correct alignment and fairleads, friction stays low and the line runs smoothly. The windlass, cleat, or integrated brake mechanism holds the load when you stop.
- Anchoring – pay out the rode to the chosen scope, then retrieve it cleanly.
- Towing – feed rope under steady tension for safe boat‑to‑boat pulls.
- Docking – deploy a controlled length to guide the vessel without shock loads.
These basics help you compare a dedicated reel of rope system with loose‑rope storage. Next, see how the reel interfaces with deck hardware and why it outperforms a simple coil in daily use.
Key features of a reel of rope system
A purpose‑built system integrates with your windlass and deck fittings for safer, faster handling. Here’s how it works, why it is superior to loose coils, and what materials stand up to marine conditions.
A reel of rope can be positioned to feed the windlass cleanly via fairleads and a gypsy that suits your line. The thimble protects the rope’s eye at shackles and anchors, helping each turn translate into controlled payout and retrieval. With proper routing and spooling, chafe is reduced and the line keeps its strength longer than a loose, unprotected coil.
Choose a dedicated system for three clear advantages:
- Consistent control – the windlass, cleat, or brake holds the load at the exact length you set.
- Space efficiency – the spool stores long lengths in a compact housing, freeing deck space.
- Rapid deployment – pull and go; ideal for emergency anchoring or quick mooring.
Common rope materials include:
- Nylon – high stretch to absorb wave shock; ideal for dynamic anchoring and mooring rodes.
- Polyester (Dacron) – low stretch with strong UV and abrasion resistance; great for static moorings and dock lines.
- Polypropylene – floats and is light‑weight and cost‑effective, but less UV‑resistant; suits temporary or secondary lines.
How long should your rode be? Use a 5 : 1 scope as a minimum, and 7 : 1 when conditions demand. Multiply water depth plus freeboard by the chosen ratio. For example: 20 ft depth + 4 ft freeboard at 7 : 1 ≈ 168 ft of rope.
Can a 2‑inch rope be used on a 20‑ft boat? Technically yes, but it is far oversized and impractical. A common guide is about 1/8‑inch of diameter per 9 ft of boat length, so a 20‑ft craft typically uses 3/8‑inch to 1/2‑inch line.
“Nylon’s elasticity absorbs wave shock and helps prevent sudden load spikes on the windlass.” – John Miller, PhD, Naval Architecture
Installation at a glance
1. Position the reel housing on a sturdy deck surface or bracket and bolt it using stainless‑steel hardware. 2. Route the rope through the fairlead and thimble so the eye faces forward. 3. Attach the rope to your anchor or mooring hardware with a stainless‑steel shackle. 4. Hand‑tension and test feed under a light load to check tracking. 5. Confirm smooth payout and retrieval, then finalise all fixings per the manufacturer’s instructions.
Choosing the right 2 inch boat rope
With the required length in mind, select a 2 inch boat rope that meets your vessel’s loads and handling needs. The right choice balances strength, stretch, and durability for your anchoring style.
Load‑rating guide – A common safety practice is to set the working load limit (WLL) at roughly one‑fifth of the rope’s minimum breaking strength (MBS). Actual figures depend on construction. As a conservative example for marine‑grade double‑braid nylon:
| Diameter | Working Load Limit | Breaking Strength |
|---|---|---|
| 2 inch | ≈ 34 000 lb (≈ 15 400 kg) | ≈ 170 000 lb (≈ 77 100 kg) |
Always check the exact WLL and MBS for your chosen rope construction and splice, then apply a safety factor suitable for your conditions.
Sizing the rope length – Use a scope between five and seven times the water depth plus freeboard. Multiply the combined depth by your chosen ratio to find the minimum rode length. In 15 ft of water with a 3‑ft freeboard, a 6 : 1 scope is about 108 ft, while 7 : 1 is roughly 126 ft. Increase scope for heavy weather or soft seabeds.
Material comparison – Each polymer has distinct performance characteristics:
| Material | Stretch under load | UV resistance | Typical use |
|---|---|---|---|
| Nylon | High (excellent shock absorption) | Moderate | Dynamic anchoring and mooring rodes |
| Polyester (Dacron) | Low (holds shape) | High | Static moorings and dock lines |
| Polypropylene | Medium | Lower without UV stabilisers | Floating or temporary lines |
Can I use a 2‑inch rope on a 20‑ft boat? It is possible but unnecessary. Follow the diameter rule of thumb above and ensure the rope’s WLL exceeds the loads you anticipate.
Tip: WLL is typically one‑fifth of the rope’s breaking strength. Always confirm values from the manufacturer’s specification.
With load rating, length, and material set, explore iRopes’ customisation options – colour, reflective yarns, branding, and packaging – so your reel of rope matches both performance and identity.
Customisation, ordering, and maintenance best practices
Turn your specification into a ready‑to‑use solution. iRopes’ OEM/ODM services let you customise the rope supplied on reels, align it with your brand, and keep it performing in harsh marine conditions.
Our most requested customisation options can be combined into a single, ready‑ship package for wholesale orders:
- Colour matching – select RAL or Pantone shades to align with your branding.
- Reflective inserts – woven reflective yarn for enhanced night‑time visibility.
- Branding & packaging – customer‑branded bags, colour boxes, or cartons; barcoding for easy inventory.
The ordering journey follows a clear, three‑stage workflow designed to protect your IP and deliver a perfect fit.
- Design approval – send CAD files or a brief; our rope specialists confirm feasibility and recommend materials.
- Sample testing – we produce a pre‑production rope sample on a reel for evaluation and performance checks.
- IP protection & production – after sign‑off, we proceed under strict IP protection and ISO 9001 quality controls.
For a quick overview of the 1‑inch and 2‑inch braided rope families we offer, see our explore iRopes 1‑inch and 2‑inch braided rope options page.
Even the best rope needs consistent care. Inspect every six months for frayed strands, glazing, stiffened fibres, or UV discolouration. Rinse with fresh water and a mild marine soap, then dry and store away from direct sun to limit UV damage.
How often should I replace a boat rope? Replace immediately if you see broken strands, hard spots, or significant flattening. For heavy‑use vessels, plan for replacement about every two years; otherwise follow inspection results or if wear exceeds roughly 10 % of diameter.
For more essential tips for maintaining boat anchor ropes, refer to our dedicated guide.

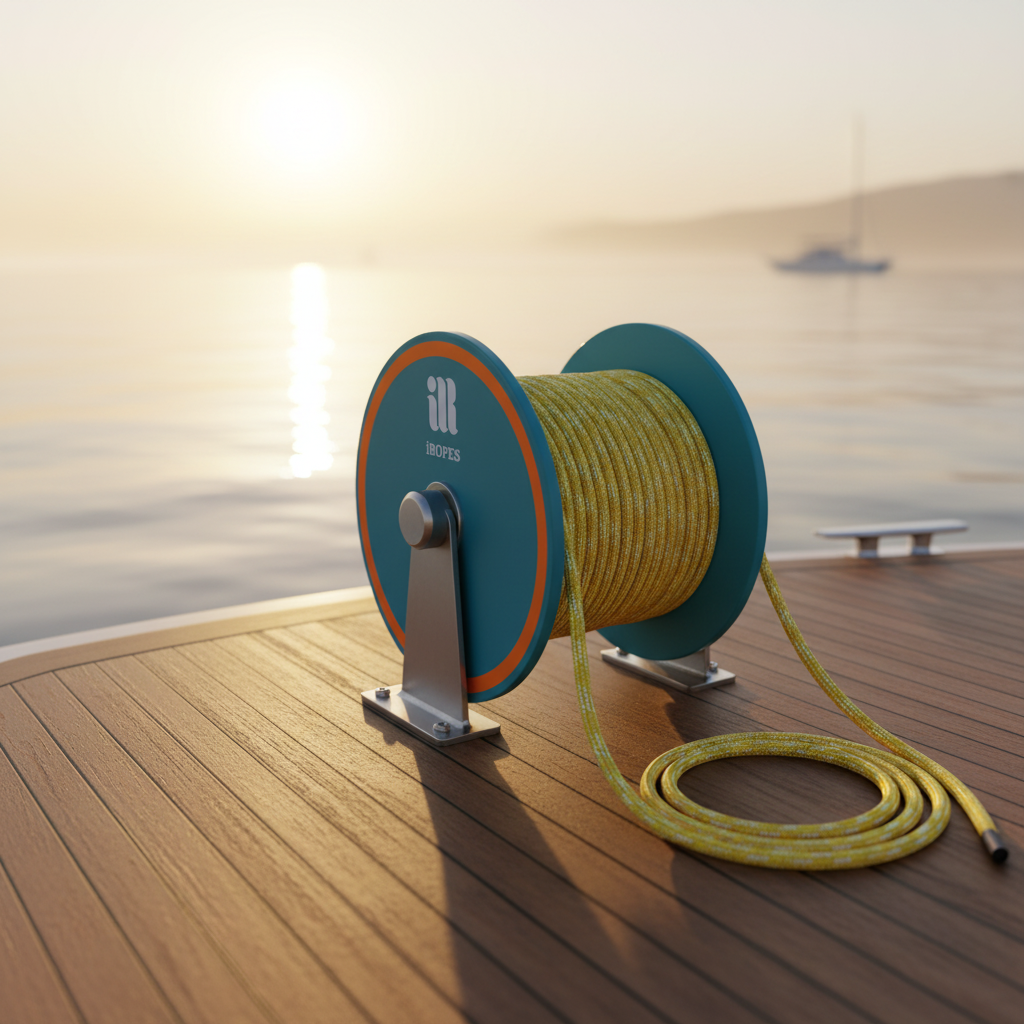

With colour, branding, and a simple maintenance routine in place, your 2 inch boat rope reel becomes a dependable asset instead of a post‑storm headache. Next, review the key takeaways and request a personalised quote to turn your specification into a delivered solution.
Get a Bespoke Rope Reel Quote for Your Vessel
By selecting the appropriate 2 inch boat rope and pairing it with a quality boat rope reel, you support safe anchoring, towing, and docking while protecting the line from chafe and ensuring rapid deployment.
We specialise in customising the reel of rope to your exact colour, size, and branding needs, delivering high‑quality, cost‑effective solutions backed by ISO 9001 quality assurance and robust IP protection. Packaging can be non‑branded or customer‑branded, and we ship pallets directly to locations worldwide.
If you’d like personalised guidance to design the perfect solution, please complete the enquiry form above. Our team is ready to help you bring your custom rope system to life with timely delivery and competitive wholesale pricing.
