You don’t need a one‑size‑fits‑all sling – the right style improves safety, protects your equipment, and makes every lift more efficient.
What you’ll gain – ~9 min read
- ✓ Choose the optimal sling type for your load and environment.
- ✓ Calculate the Working Load Limit with a simple two‑step formula.
- ✓ Apply essential safety rules to speed up pre‑lift checks.
- ✓ Unlock custom‑branding options that streamline procurement for your team.
Most crews reach for the first sling they see, assuming any rope will do—until a missed inspection forces a costly shutdown. What if you could pinpoint the exact sling style that matches your load, environment and branding in seconds, and skip the guesswork that eats days off your schedule? In the sections that follow we’ll dissect transformer slings, rope slings for lifting, and steel lifting slings, reveal the mis‑steps most overlook, and show you a proven workflow to lock in safety, performance and savings.
Transformer Slings – Types, Features, and Applications
After exploring why the right sling matters for safety and efficiency, let’s dive into the specific family that powers most electrical‑equipment moves – transformer slings. Whether you’re rigging a 30 ton substation unit or a smaller distribution transformer, the right style can make the difference between a smooth lift and a costly delay.
Overview of sling styles
Transformer slings come in three common configurations, each built to handle a different lifting geometry:

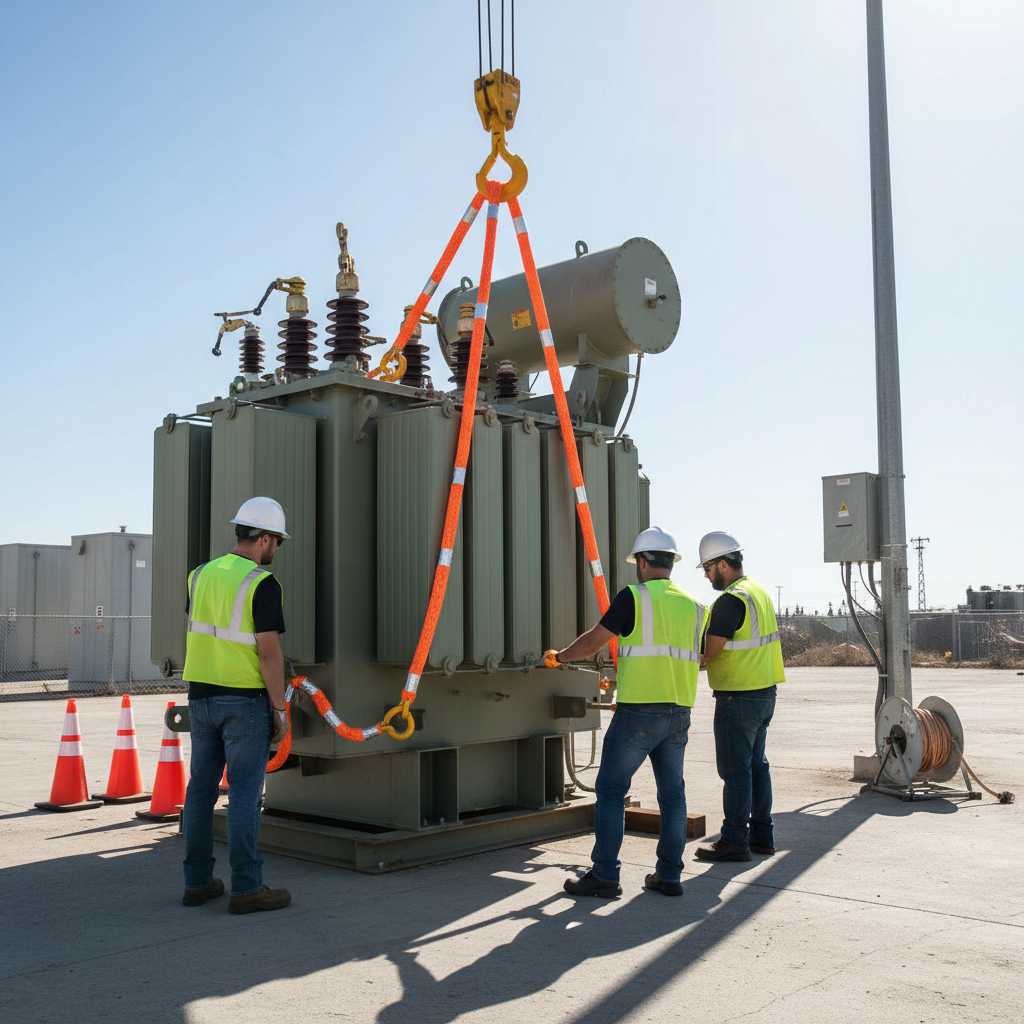

- 4‑leg – four attachment points form a stable “basket” that distributes load evenly around the transformer’s frame.
- Eye‑to‑eye – two eyes at opposite ends create a straight line lift, ideal when space is limited.
- Adjustable – a sliding loop lets you fine‑tune the effective length, useful for varying height clearances.
Typical sizes, load limits, and custom options
The most requested diameters are ½ in, 5/8 in, and ¾ in, with working load limits ranging from roughly 2,000 lb up to 6,000 lb. iRopes can tailor each sling’s colour palette, add high‑visibility reflective tape, or embed branding directly onto the webbing – a small detail that can improve night‑time safety and help crews spot the right sling on a busy site.
Common industries and real‑world use‑case examples
Utility companies use 4‑leg slings to hoist heavy power transformers onto trucks, while oil‑and‑gas plants prefer eye‑to‑eye rigs for compact equipment bays. A recent project in a coastal substation required adjustable slings to clear a newly installed cable tray without dismantling existing hardware. The flexibility of the adjustable design saved an entire workday.
“Transformer slings are engineered for repeated use as long as you follow the inspection schedule and keep the eye fittings free of cuts. Proper maintenance can extend their service life well beyond a single lift.” – John Miller, Certified Rigger (OSHA‑trained)
So, are transformer slings reusable? The short answer is yes – they are designed for multiple lifts provided they remain within their rated capacity, are inspected before each use, and are stored away from chemicals and sharp edges. Damage to the webbing or eye terminations ends the reuse cycle, but routine checks keep them performing safely.
When you later compare these specialised rigs to rope slings for lifting or steel lifting slings, the contrast in flexibility, load‑capacity calculations and environmental resistance becomes clear, setting the stage for the next part of our guide.
Rope Slings for Lifting – Materials, Sizing, and Load Calculations
Having seen how transformer‑specific rigs differ, it’s time to turn the spotlight on the workhorse of many sites: rope slings for lifting. Whether you’re moving a steel pipe bundle or a delicate piece of equipment, the right rope can make the job safer and more efficient.
Material options – polyester versus nylon
Polyester rope slings are prized for their excellent UV resistance; prolonged sun exposure won’t erode their strength as quickly as some alternatives. Nylon, on the other hand, offers higher elasticity, which can absorb shock loads but may stretch more under tension. Choosing between them often hinges on three factors:
- Environmental exposure – UV‑rich outdoor work favours polyester.
- Temperature and chemicals – select a material rated for the expected heat and any chemical contact.
- Shock‑absorption needs – nylon’s stretch can protect delicate loads.
Diameter, length, and Working Load Limit (WLL)
The Working Load Limit tells you the maximum safe load for a given sling. The basic formula is:
WLL = Breaking Strength ÷ Safety Factor
Most manufacturers publish breaking strength for each diameter. A safety factor of 4 is common in lifting applications; always follow applicable regulations and manufacturer guidance.
For example, a ½‑inch polyester rope with a breaking strength of 12,000 lb yields:
WLL = 12,000 lb ÷ 4 = 3,000 lb
This calculation answers the common query “How do I calculate the Working Load Limit?” and gives you a quick reference when selecting a sling size.
Choosing the right size and material
When you match a rope sling to a job, consider three practical dimensions:
- Load demand – Select a diameter whose WLL comfortably exceeds the heaviest single load you’ll lift.
- Temperature exposure – If the lift occurs near heat sources, pick a material with a rated temperature range for that site.
- Environmental conditions – Coastal or chemical‑heavy sites benefit from polyester’s superior UV and chemical resistance.
Lengths are often offered in 6‑ft increments; choose the shortest length that still allows proper rigging geometry to minimise swing.
By keeping these criteria in mind, you can avoid the common pitfall of over‑specifying a sling that adds cost without benefit. The next logical step is to see how steel lifting slings compare when the job demands even higher strength or elevated temperatures.
Steel Lifting Slings – Strength, Standards, and Safety Practices
Having examined the versatility of rope slings, it’s time to focus on the workhorses that dominate the heaviest lifts: steel lifting slings. Their rugged construction makes them indispensable in environments where heat, abrasive forces, or extreme loads are the norm.

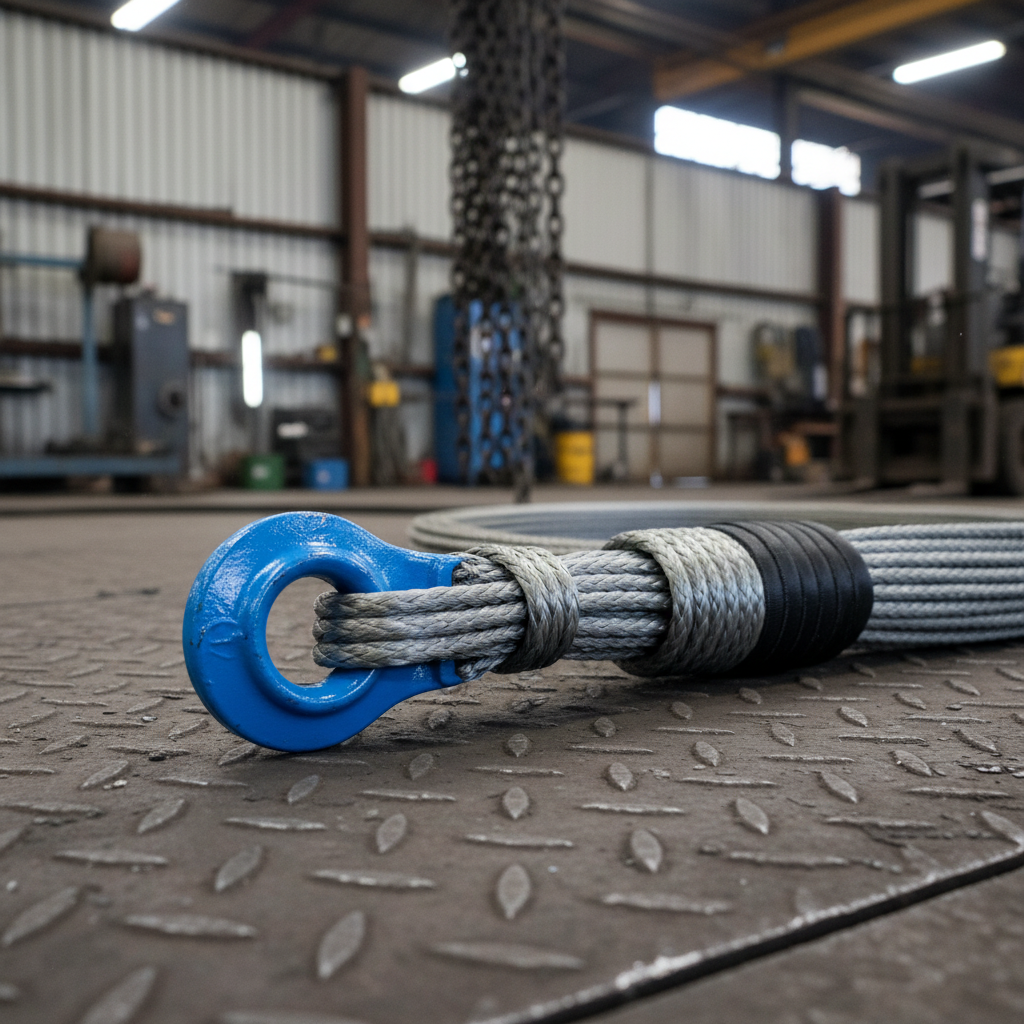

Wire‑Rope Slings
Durable, high‑strength options
Construction
Steel strands laid and twisted into a flexible rope that resists abrasion.
Capacity
Capacity scales with diameter, construction, and configuration. Always consult the manufacturer’s WLL chart.
Heat Tolerance
Tolerates higher temperatures than synthetic slings when used within rated limits.
Alloy‑Steel Chain Slings
Compact, high‑load solutions
Material
Heat‑treated alloy‑steel chain links engineered for high strength and durability.
Bending Radius
Avoid tight D/d ratios that can damage links; use appropriately sized hooks and shackles.
Inspection
Check for corrosion, wear or elongation, cracks, and any fitting or eye integrity issues.
Associated hardware such as bolts and nuts on lifting assemblies may be specified to ASTM A193/A194. Always follow the sling manufacturer’s specifications and relevant safety standards. For a broader overview of lifting hardware, see our crane slings & hoist solutions. The working load limit (WLL) is typically derived by dividing the manufacturer’s breaking strength by an appropriate safety factor (often 4 for lifting).

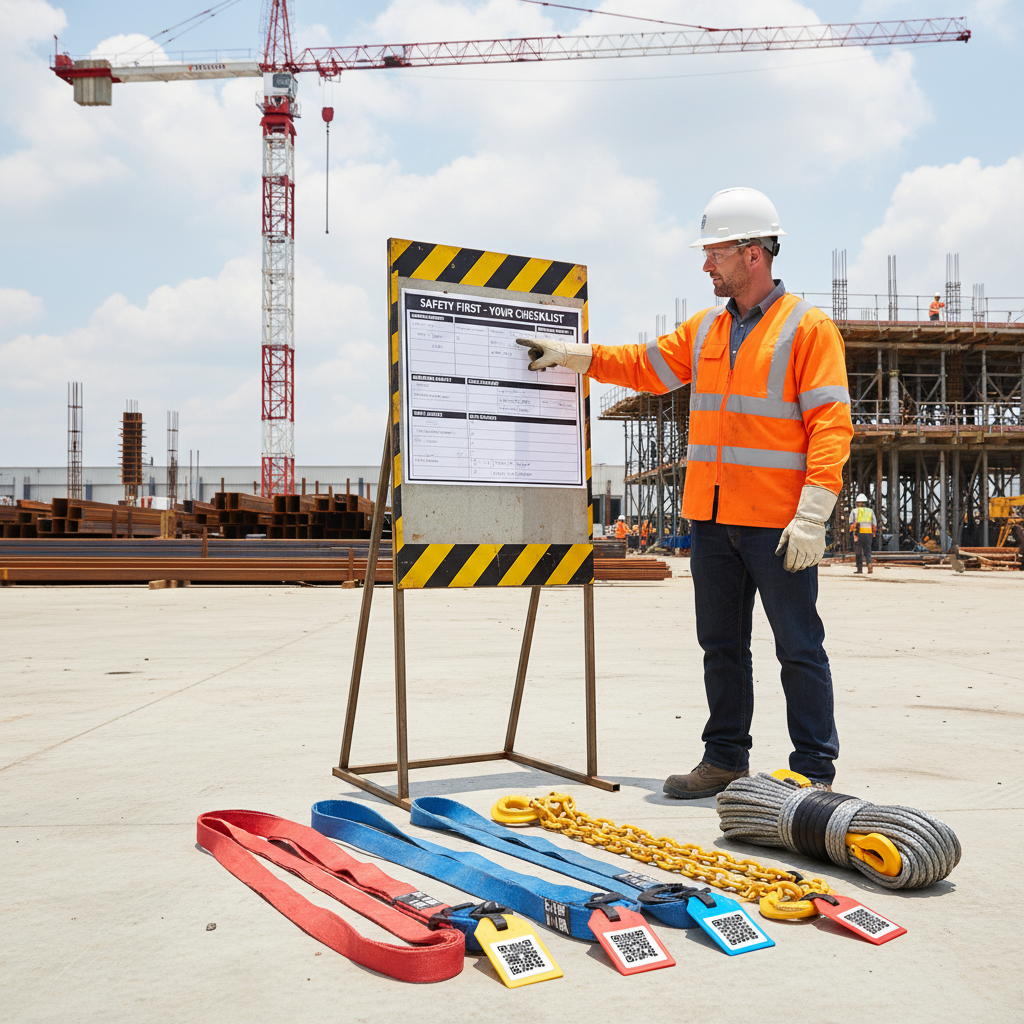

Inspection checklist – look for broken strands, corrosion on fittings, worn eye sleeves, and any deformation beyond the permitted bending radius before each use.
In high‑load or elevated‑temperature environments like steel mills or offshore platforms, steel lifting slings outperform synthetics and maintain reliability when conditions are harsh. Their compact profile also helps reduce swing on the crane, improving site safety.
When budgeting, expect a price range of $80–$600 for standard lengths and diameters. Custom lengths, specialised coatings, or branding will shift the cost toward the upper end of that spectrum.
Understanding these specifications equips you to match the right sling to the toughest job, and the next section will pull together all sling families with a concise safety checklist and a guide to bespoke OEM solutions.
Safety, Compliance, and Custom OEM Solutions
Now that you’ve seen the strengths of steel lifting slings, it’s time to anchor the discussion in the rules that keep every lift safe and the quality systems that guarantee the sling you receive will perform as promised.
OSHA and CCOHS converge on three practical rules that protect you and your crew:
1️⃣ Store slings off the ground and away from chemicals – this prevents hidden corrosion that can weaken even the toughest steel lifting slings.
2️⃣ Keep every sling free of cuts, nicks or abrasions – a single nick can become a failure point under load, so a visual inspection before each lift is non‑negotiable.
3️⃣ Match the sling type to the load temperature and geometry – using nylon rope slings for lifting in a furnace environment, for example, would breach temperature limits and compromise safety.
OSHA 1910.184 also calls for regular, documented inspections (at least every six months) and conservative sling angles—aim for 45° or greater where practicable to maintain capacity.
“Our ISO 9001 system means every sling leaves the floor with a documented inspection record, so you can trust the load capacity even after years of service.” – iRopes Quality Assurance Manager
Beyond compliance, iRopes lets you turn a functional piece of equipment into a brand statement. Whether you need a splash of high‑visibility orange for night work or a corporate colour that matches your fleet, the factory can blend pigments directly into the webbing. The same workflow supports full‑colour branding, custom‑size packaging, and private‑label labelling, with non‑branded or customer‑branded packaging and direct pallet shipping worldwide, all protected by our IP‑guarded OEM/ODM process.
- Colour & reflective tape – choose from standard palettes or supply a Pantone code for a unique hue that shines in low light.
- Branding & logo embossing – integrate your logo onto the sling webbing or eye fittings for instant identification.
- Packaging options – select bulk bags, colour‑coded cartons, or custom‑printed boxes that arrive ready for distribution.
So, can you get custom‑coloured slings? Absolutely. iRopes’ OEM service lets you specify the exact shade, add reflective strips, and even request colour‑coded tags that align with your site‑wide safety colour‑coding scheme.
With safety rules, ISO 9001 assurance, and a full suite of customisation choices now laid out, explore our adjustable transformer sling solutions for projects that need versatile length adjustments. The next step is to pull everything together in a concise buying guide that helps you select the right sling for any job.
Ready for a personalised sling solution?
In this guide we introduced the main sling styles—4‑leg, eye‑to‑eye and adjustable transformer slings—alongside the material choices for rope slings for lifting and the robust performance of steel lifting slings. By understanding sizing, Working Load Limit calculations, inspection checklists and custom branding options, you can select the right solution for your operation and avoid costly delays.
If you’d like personalised advice on selecting or customising the ideal sling for your project, simply complete the form above and our iRopes specialists will be in touch to help you achieve a safe, efficient lift.
