Understanding Wire Rope Sling Capacities and Types

Most engineers assume a wire‑rope sling’s rating is set in stone, yet the same 1⁄2‑inch rope can swing between 33.6 kN and 23.8 kN simply by changing the hitch angle or splice efficiency. These wire rope sling capacities are governed by clear formulas and safety factors, not guesswork. In the sections below, we’ll unpack the maths, match the right sling type to your load, and show how iRopes’ OEM/ODM service helps ensure you never mis‑size a lift.

Understanding Wire Rope Sling Capacities

Having explored why a reliable sling is the backbone of every safe lift, the next logical step is to decode the numbers that appear on product tags. Those figures – the wire rope sling capacities – are more than marketing; they are the result of a strict engineering formula that protects people and equipment.

Working Load Limit (WLL) and the design factor 5

The Working Load Limit is the maximum load a sling may safely support under normal conditions. It is calculated by dividing the Minimum Breaking Strength (MBS) by the industry‑standard design factor of 5, as prescribed by ASME B30.9. In practice, the formula reads:

WLL = MBS × Efficiency ÷ 5. The efficiency term reflects splice type – for example, a hand‑spliced eye typically runs at 85‑90 % efficiency, while a swaged fitting reaches 100 %.

Answering a common query, “What is the working load limit of a wire rope sling?” – it is simply the MBS adjusted by the 5:1 safety factor and the specific splice efficiency.

Step‑by‑step capacity calculation

For instance, a 1⁄2‑inch 6×19 steel rope has an MBS of 177 kN. Using a mechanically spliced eye (0.95 efficiency):

WLL = 177 kN × 0.95 ÷ 5 ≈ 33.6 kN (≈ 7,550 lb). If the sling forms a 45° choker, the load on each leg increases by 1.414×, so the adjusted capacity becomes 33.6 kN ÷ 1.414 ≈ 23.8 kN per leg.

Influence of sling angle and D/d ratio

These adjustments answer another frequent question: “How does sling angle affect capacity?” The answer lies in the angle‑reduction factor, which scales the load per leg before any D/d checks are applied.

Reference capacity chart

Below is a visual reference that matches rope diameter to typical WLL values for vertical, choker, and basket hitches. The chart also flags the minimum D/d ratios required for each hitch type. Download the full PDF for a printable version.

Remember, the numbers on the chart are based on a 5:1 safety factor and assume proper splice efficiency. If you need a customised solution – perhaps a coloured eye or a stainless‑steel finish – a reputable wire rope sling supplier like iRopes can tailor the rope to meet those exact specifications while preserving the calculated capacities. iRopes provides ISO 9001–backed OEM (Original Equipment Manufacturer) and ODM (Original Design Manufacturer) services with dedicated IP protection, custom colours, branding, and packaging.

With a clear grasp of how WLL, angle, and D/d ratio interact, you can now match the right capacity to any load. The next part of the guide will walk you through the various wire rope sling types and help you decide which construction best fits your application.

Exploring Different Wire Rope Sling Types

Now that the maths behind wire rope sling capacities is clear, it’s time to look at the structures that actually carry the load. Different wire rope sling types are engineered for specific angles, environments and inspection regimes, so choosing the right construction is as important as picking the correct WLL.

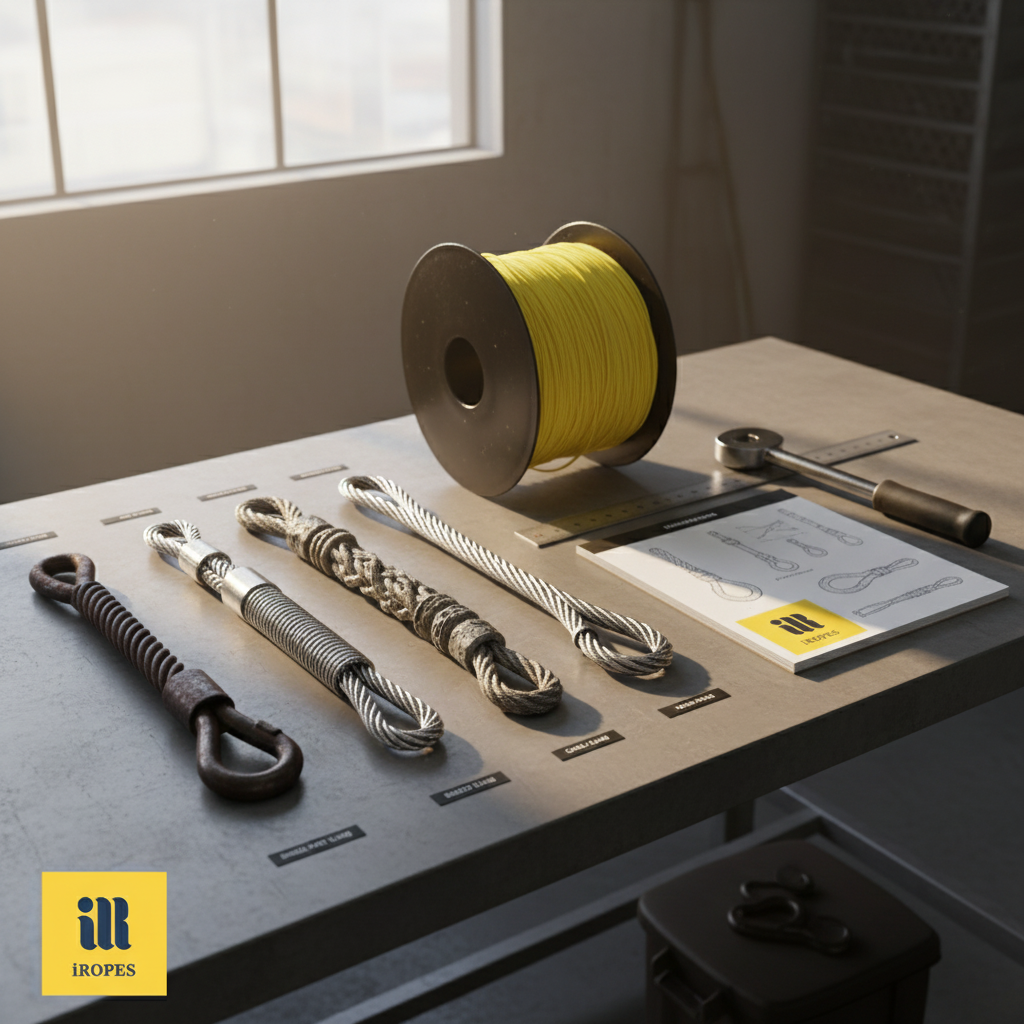

When a rigging engineer asks “what are the different types of wire rope slings?”, the answer can be broken into four families:

• Single‑part slings – a continuous rope with a hand‑spliced or mechanically spliced eye.
• Multi‑part braids – three‑ or more rope legs woven together, offering higher load distribution.
• Cable‑laid slings – strands wrapped around a core, allowing long‑run configurations and flexible splicing.
• Stainless‑steel slings – the same constructions as above but fabricated from corrosion‑resistant alloy for harsh environments.

Each family brings its own splice efficiency, typical application and performance nuance. A single‑part sling with a hand‑spliced eye usually runs at about 85 % efficiency, while a swaged fitting on a cable‑laid sling reaches 100 %. Multi‑part braids commonly use mechanical terminations that achieve around 95 % efficiency.

Choosing the right family depends on three practical questions: what is the load’s orientation, where will the sling operate, and how often will it be inspected? For offshore crane work, a stainless‑steel three‑leg braid with a swaged eye gives an excellent combination of strength‑to‑weight and corrosion resistance. In a warehouse where vertical lifts dominate, a single‑part 6×19 steel sling with a hand‑spliced eye often provides sufficient capacity at the lowest cost.

To match a sling type to a specific requirement, start with the load’s weight, then assess the operating environment. If the job involves frequent exposure to salt spray, opt for stainless‑steel. When the lift angle exceeds 45°, a multi‑part braid can reduce leg stress compared with a single‑part sling. Finally, confirm that the chosen construction’s splice efficiency aligns with the calculated wire rope sling capacities – a swaged fitting will preserve the full rating, whereas a hand‑spliced eye will lower it slightly.

Armed with this taxonomy, the next step is to evaluate which wire rope sling suppliers can deliver the exact configuration you need, ensuring the customisation options you require are available.

Choosing Reliable Wire Rope Sling Suppliers

Now that you have matched the correct sling type to your load, the next decision is where to source it. A supplier that respects the same safety standards you rely on will keep the calculated capacities intact and protect your operation from costly surprises.

When you start vetting potential partners, keep these four pillars in mind:

Apply the matrix in the image above to compare each contender’s certification status, lead‑time guarantees, OEM/ODM depth, and IP protection policies. A supplier that ticks every box will reliably reproduce the specifications you derived from the capacity calculations.

Before you send a request for quotation, gather these details: exact rope diameter, required hitch type, splice efficiency, colour or branding preferences, and the anticipated delivery schedule. Providing a complete brief lets the supplier generate an accurate price and prevents later redesigns. Once a quote arrives, verify the quoted WLL matches the capacity chart you used earlier and confirm that the supplier’s inspection reports reference the same design factor 5 you applied in your calculations.

With a vetted supplier list in hand, you can move confidently toward the next phase—setting up a maintenance and inspection programme that keeps every sling performing at its rated strength for years to come.

By mastering the working load limit formula, the impact of sling angle and D/d ratio, and the nuances of the four main wire rope sling types, you now have a solid basis for selecting the right solution. Comparing the strength‑to‑weight ratio of steel wire with UHMWPE’s density (e.g., Dyneema) of the same diameter shows how dramatically weight drops. UHMWPE’s density is ~0.97 g/cc versus steel’s 7.85 g/cc, delivering up to 15× better strength‑to‑weight, which can reduce handling effort while meeting the required WLL.

If you want a customised sling that meets these calculations – whether you need specific colour‑coded eyes, stainless‑steel finishes or a UHMWPE‑based design – iRopes, a leading wire rope sling supplier and professional rope manufacturer, can tailor the product to your exact specifications and help you navigate the optimal wire rope sling types for your operation.
