5 / 16 winch cable strength: steel is typically 9,800–10,000 lb MBS with a published WLL around 2,000 lb; synthetic is usually 12,000–13,000 lb MBS with a 3,000–4,000 lb WLL (always follow your rope’s tag).
≈ 8‑minute read: What you’ll gain
- ✓ Maximise pull confidence — 5 / 16 steel is ≈ 9,800–10,000 lb MBS; synthetic reaches ≈ 12,000–13,000 lb while cutting line mass by about 30 %.
- ✓ ISO 9001‑certified quality — audited in 2023 with a 98 % defect‑free rate; third‑party ASTM A1023‑compliant reports available.
- ✓ Fast global shipping — standard pallets in 2‑4 weeks, custom orders in 6‑8 weeks, keeping projects on schedule.
- ✓ Full IP protection & custom branding — customer‑branded packaging and labels with protected designs end‑to‑end.
Most winch operators assume a heavy‑duty steel line is the only safe choice, yet the extra weight can stall the motor and shorten your recovery range. iRopes flips that script with a 5 / 16 Dyneema rope that’s around 30 % lighter while still delivering 12,000‑13,000 lb minimum breaking strength — and it ships with ISO 9001‑certified quality and bespoke branding. Keep reading to see how this practical upgrade can shave minutes off each pull and protect your equipment.
3 16 winch cable

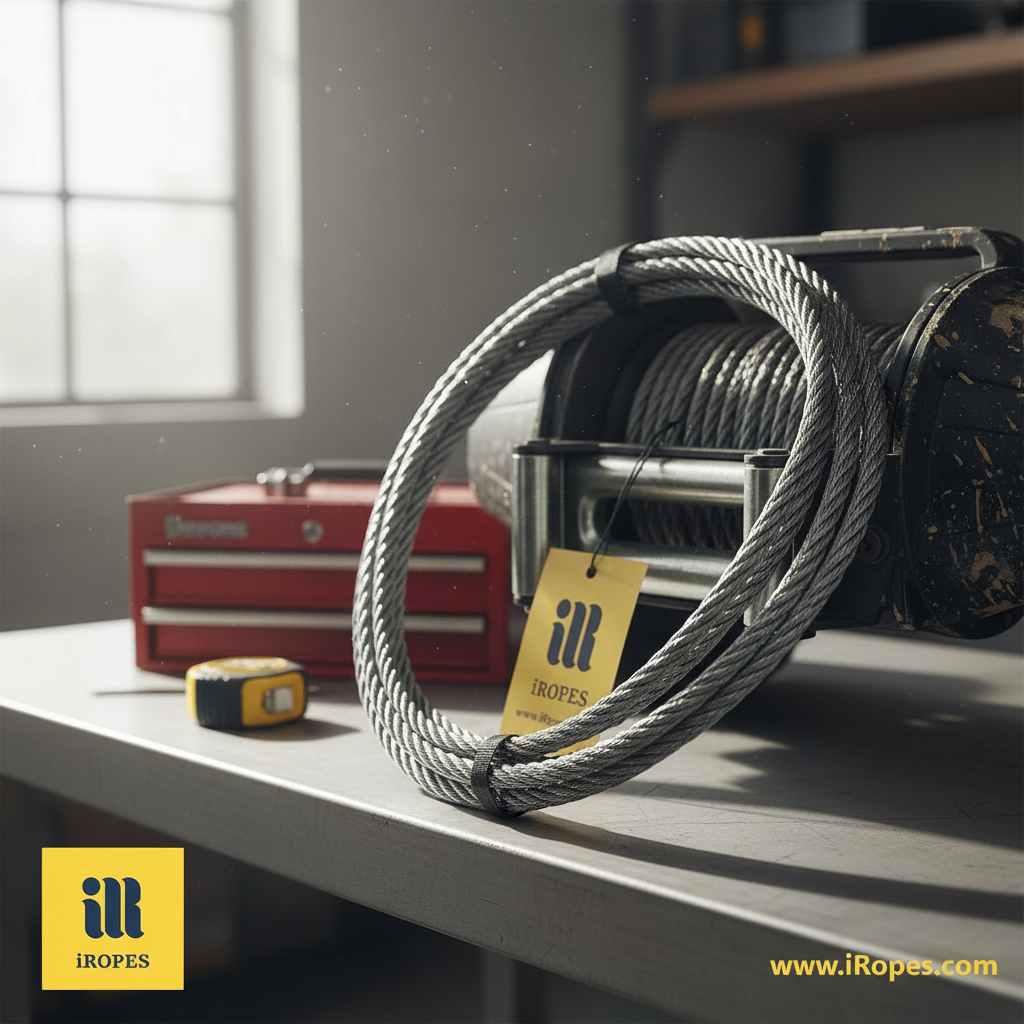

The 3 16 winch cable is a 3/16‑inch diameter steel line built with a 7×19 strand pattern and a galvanised coating that resists rust in harsh environments. Its compact size routes easily through tight drum housings while still delivering reliable pull.
With a minimum breaking strength of approximately 7,500 lb, the cable’s typical published working‑load limit sits near 2,000 lb. So, how strong is a 3 16 winch cable? It offers roughly 7,500 lb of breaking strength and a safe working limit around 2,000 lb, which aligns with most light‑duty winch specifications.
- Off‑road recovery – ideal for light‑to‑moderate vehicle pulls where winch capacity is under 5,000 lb.
- Marine winches – compact size fits small boat davits and resists salt‑water corrosion.
- Portable industrial hoists – provides reliable lift for equipment under 2,000 lb.
Our field teams value the 3 16 cable for its balance of strength and flexibility. It helps recover stuck utes without overstressing the winch motor, and the galvanised sheath endures dust, mud, and spray.
When you need more pulling power, stepping up to a 5 16 winch cable adds roughly 2,500 lb of breaking strength, widening the range of winch models you can pair with confidence.
5 16 winch cable
Stepping up from the 3 16 size adds a noticeable boost in pulling power, and the 5 16 winch cable is the go‑to choice when you need that extra margin for heavier loads. Its larger diameter and higher strand count translate into a sturdier line that can handle demanding off‑road or marine recoveries without overworking the winch motor.
The standard steel version of the 5 16 winch cable measures 0.312 in (7.9 mm) in diameter and typically employs a 7×19 construction, giving it a flexible, kink‑resistant profile. With a minimum breaking strength of roughly 9,800–10,000 lb, many manufacturers publish a working‑load limit around 2,000 lb to maintain a conservative safety factor. This size is commonly paired with 9–10 k lb winches; however, always follow the rope’s stated ratings and the winch OEM guidance.
- Diameter ≈ 0.312 in (7.9 mm)
- Strand count = 7×19, galvanised steel core
- Minimum breaking strength ≈ 9,800–10,000 lb; typical WLL ≈ 2,000 lb

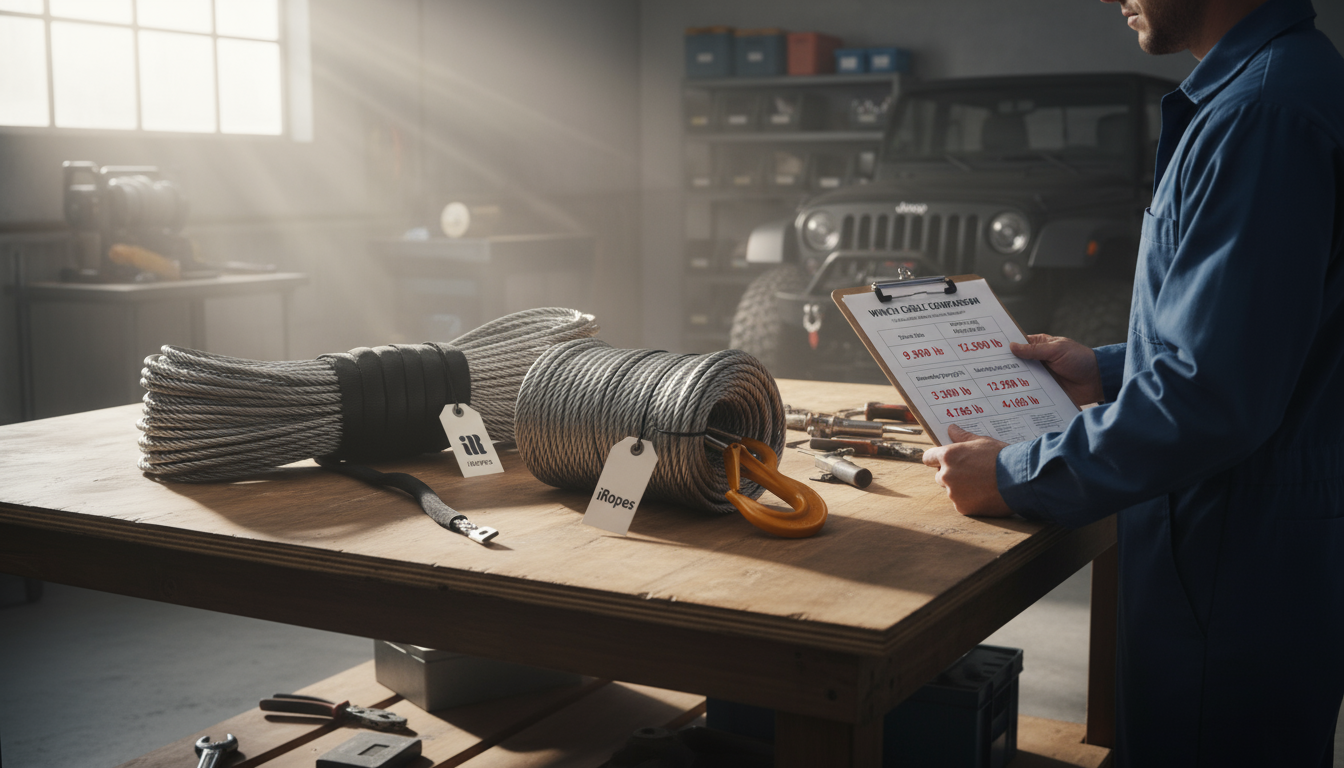

When you compare steel to synthetic alternatives, the differences become clear. A 5 16 synthetic rope, often made from Dyneema UHMWPE, pushes the breaking strength into the 12,000‑13,000 lb range while shedding around 30 % of the weight of its steel counterpart. The lighter mass reduces strain on the winch motor, which is valuable on long‑range off‑road expeditions where every kilogram counts. Moreover, synthetic lines never rust, making them ideal for salty marine environments where galvanised steel will eventually corrode.
Answering a common query: What size wire is appropriate for a 12,000 lb winch? Many 12 k lb winches ship with 3/8″ steel cable. If weight is a concern, a 5 16 synthetic rope rated at 12,000‑13,000 lb MBS may suit some setups. Always confirm the winch manufacturer’s recommendation and respect the rope’s WLL and safety factor.
Performance Impact
A thicker 5 16 cable occupies more drum space, which means each layer sits slightly lower on the drum. To maintain optimal line speed, many operators trim the cable length by about 15 ft when moving from a 3 16 to a 5 16 line. The trade‑off is a stronger, more fatigue‑resistant rope that can pull heavier vehicles and endure harsher terrain without premature wear.
Choosing the right material and length for your winch system is more than a numbers game; it shapes how the cable wraps on the drum, how quickly it reels in, and how long it lasts under repeated stress. With the 5 16 winch cable’s higher tensile capacity and the option of a lighter synthetic winch rope, you can match the cable to the specific demands of your vehicle, boat, or industrial rig. This sets the stage for the next discussion on the exact strength metrics that define the 5 16 winch cable’s performance.
5 16 winch cable strength
Now that you understand why the larger diameter matters, let’s look at the exact numbers that make a 5 16 winch cable a smart choice for heavy‑duty recovery.
Quick answer: a 5 16 steel winch cable is typically 9,800–10,000 lb minimum breaking strength with a published WLL around 2,000 lb. A 5 16 synthetic rope usually delivers 12,000–13,000 lb MBS with a recommended WLL of roughly 3,000–4,000 lb, depending on the chosen safety factor.
Steel
Minimum breaking strength ≈ 9,800–10,000 lb — a common spec for 7×19 galvanised wire rope used on 5 / 16 winch cables.
Typical WLL
Safe load ≈ 2,000 lb (per common industry labelling and conservative safety factors; always follow your rope’s tag).
Synthetic
Minimum breaking strength ≈ 12,000–13,000 lb — Dyneema‑based UHMWPE lines provide higher tensile ratings at lower weight.
Recommended WLL
Safe load ≈ 3,000–4,000 lb (typical 3–4:1 safety factors; confirm the exact WLL on your product certificate).
To calculate the safe load yourself, divide the minimum breaking strength (MBS) by the safety factor you choose. For example, using a 4:1 factor on the steel cable: 9,800 lb ÷ 4 ≈ 2,450 lb WLL. The same formula applied to the synthetic line gives 12,000 lb ÷ 4 ≈ 3,000 lb. If your rope lists a WLL on the tag, use that value.
Common failure modes include drum‑edge abrasion, kinking at tight bends, and corrosion on steel. Inspect the cable before each use, keep the line clean, and replace any rope that shows visible wear to preserve its rated strength.
Armed with these figures, you can match the cable to the winch capacity you intend to use, ensuring that every pull stays within the engineered safety envelope.
iRopes advantage and customization
Having quantified the pull capacity of both the 3 16 and 5 16 winch cables, the next question specifiers ask is whether a supplier can consistently deliver those numbers and adapt the product to a brand’s exact needs.
iRopes operates under ISO 9001 certification. In 2023 our audited QMS delivered a 98 % defect‑free rate. Independent laboratories can issue ASTM A1023‑compliant tensile certificates as required, and batch‑level traceability is available to support your quality documentation and approvals.
Assured Quality
ISO‑9001, testing, traceability
ISO‑9001
Audited in 2023, our plant meets the international quality‑management standard, delivering a 98 % defect‑free rate.
Third‑party testing
ASTM A1023‑compliant tensile testing and certificates available to customer requirements and project specifications.
Traceability
Batch codes link reels to production records, simplifying documentation, warranty support, and any recall handling.
Tailored Delivery
OEM/ODM, fast logistics, cost control
Material & colour
Choose galvanised steel, Dyneema, or custom‑coloured jackets; branding can be applied to labels and packaging.
Packaging & IP
Non‑branded bags, colour boxes, or custom cartons protect the rope; comprehensive intellectual‑property protection is maintained throughout.
Lead time & pricing
Standard lengths ship in 2‑4 weeks, custom programmes in 6‑8 weeks, with competitive volume discounts for wholesale partners.
“iRopes has been our go‑to supplier for 5 16 winch cables for the past three years. Their on‑time delivery and consistent test reports let us certify our vehicles without extra paperwork.” – Technical Manager, European Off‑Road Fleet
Pricing for the 5 16 winch cable typically ranges from US $45–$55 per foot for the steel variant and US $70–$90 per foot for Dyneema‑based synthetic lines in bulk. These are indicative wholesale prices; final quotes depend on length, accessories, certification, and volume.
With these guarantees in place — ISO‑certified quality, responsive lead times, and OEM/ODM flexibility — the decision to specify an iRopes 5 16 winch cable becomes a straightforward step toward safer, more reliable recoveries.
iRopes’ 3 16 winch cable delivers around 7,500 lb of breaking strength, making it ideal for light‑duty off‑road, marine, and industrial lifts, while its compact 7×19 construction fits tight drums with ease.
The 5 16 winch cable raises the pull capacity to roughly 10,000 lb breaking strength, and its 5 16 winch cable strength outperforms most market alternatives, offering conservative WLL ratings, corrosion‑resistant galvanised options, and an optional lightweight Dyneema version. Backed by ISO 9001 certification, rapid global shipping, and consistent test documentation, iRopes is widely recognised by overseas brands and serves as their preferred fixed supplier.
