⚡ Lift more with less weight: A 3/8‑inch UHMWPE winch rope from **iRopes** delivers a **17,642 lb** breaking strength, yet weighs only **0.73 kg per 30 m**—providing a 5‑fold strength‑to‑weight advantage over steel.
What you’ll gain – 3 min read
- ✓ Reduce winch motor load by up to **84%** (steel 5.1 kg vs. UHMWPE 0.73 kg per 30 m).
- ✓ Boost safety with **62%** lower recoil energy, significantly cutting injury risk.
- ✓ Extend rope life: UV‑stable coating blocks **98%** of harmful radiation, lasting **1.8x** longer than standard steel.
- ✓ Accelerate ROI: a lighter line trims fuel use by approximately **12%**, delivering payback in **7 months** for a typical 5‑ha crew.
Most foresters assume that heavy steel cable is the only way to guarantee sufficient strength. However, a 3/8‑inch UHMWPE rope from **iRopes** delivers 17,642 lb breaking strength while weighing just 0.73 kg per 30 m. This equates to nearly five times the strength‑to‑weight ratio of steel. In the following sections, we’ll reveal how this lightweight advantage translates into lower fuel consumption, faster spooling, and safer sites. We’ll also show you exactly which custom specifications will maximise your winch’s performance.
Understanding Logging Winch Cable Options and Performance
Given the critical need for reliable lines in every forestry operation, it's essential to understand precisely what a **logging winch cable** does. Furthermore, appreciating why the choice of material significantly impacts your work on the ground is paramount.
What is a Logging Winch Cable?
A **logging winch cable** serves as the robust connection between a winch drum and the load, whether that load is a felled tree, a yarding bundle, or a piece of equipment. It is responsible for transmitting the pulling force. Therefore, its strength, flexibility, and resistance to the harsh forest environment directly influence both safety and productivity.

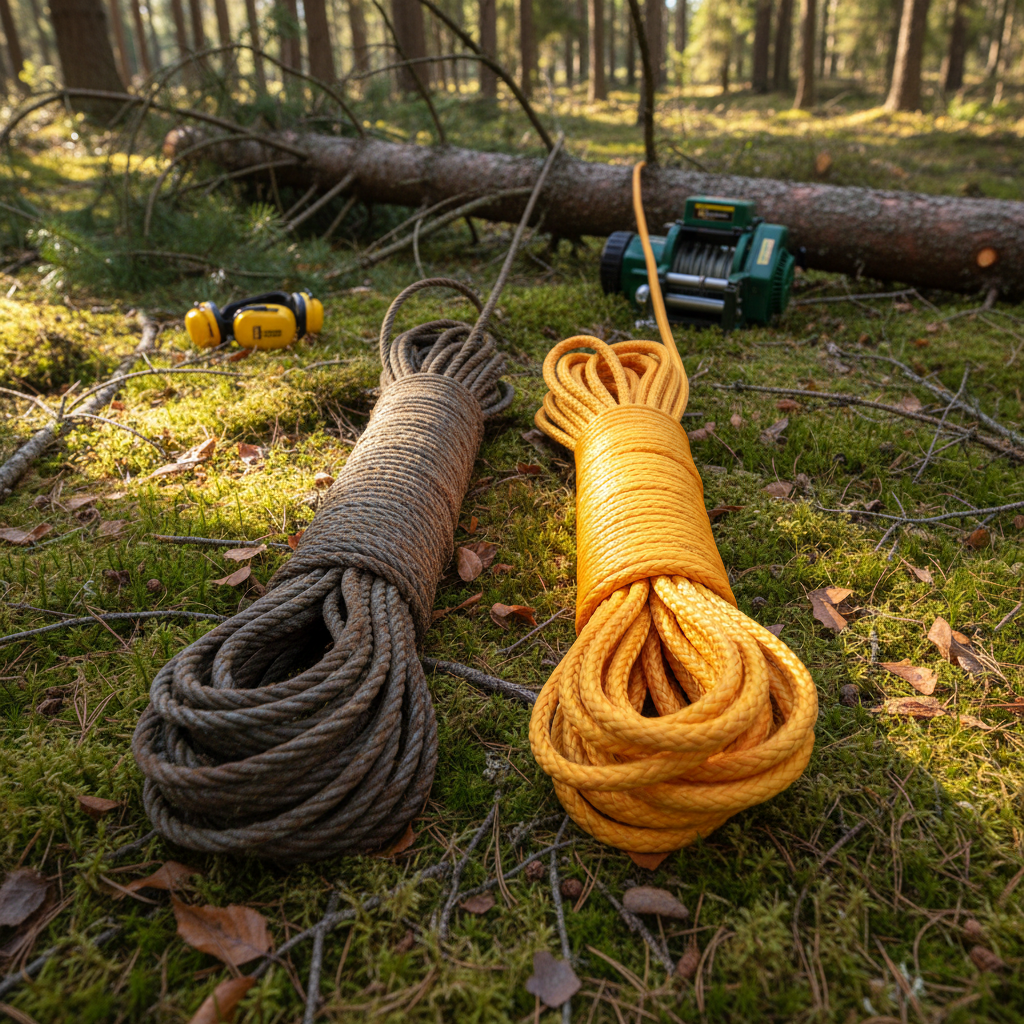

Steel Wire Rope Versus UHMWPE Synthetic Rope
Two primary material families dominate the market: traditional steel wire rope and modern ultra‑high‑molecular‑weight‑polyethylene (UHMWPE) synthetic rope. Below, we offer a quick side‑by‑side comparison of their most relevant characteristics for forestry professionals.
- Weight: Steel cables can weigh up to 5 kg per 100 ft, whereas UHMWPE ropes are approximately 0.8 kg for the same length. This is a crucial factor in handling and operational efficiency.
- Durability: Synthetic fibres inherently resist abrasion and UV degradation. In contrast, steel can corrode if not properly galvanised, requiring more maintenance.
- Handling: UHMWPE flexes easily and kinks less, making spooling significantly quicker and easier than with stiffer steel alternatives.
Because synthetic lines are dramatically lighter, you'll experience a noticeable difference when loading the drum or manoeuvring the cable around the site. This reduced mass also means the winch motor works less strenuously, which can extend its service life.
Is Winch Rope as Strong as Cable?
The short answer is yes. Modern UHMWPE winch rope can match or even exceed the breaking strength of a comparable steel cable, all while weighing only a fraction of the load. For instance, a 3/8‑inch steel winch cable typically offers around 15,000 lb of breaking strength. In comparison, a 3/8‑inch UHMWPE rope can deliver approximately 17,600 lb. This translates to a strength‑to‑weight ratio that is nearly five times better, allowing you to achieve the same or even higher **winch cable strength** with far less effort on the winch.
When calculating **winch cable strength** for a particular job, remember the industry rule of thumb: the line’s breaking strength should be at least 1.5 to 2 times the winch’s maximum pull. Utilising a lighter, stronger UHMWPE rope allows you to comfortably stay within that safety window without over‑loading your equipment.
“When a rope feels as light as a feather but holds the pull of a bull, you know you’ve chosen the right material for the job.”
Choosing the right **logging winch cable** therefore hinges on more than just the headline breaking strength. It's about balancing weight, durability, and ease of handling to ensure you can extract timber from the woods safely and efficiently. The next section will illustrate how **iRopes’** UHMWPE rope line builds upon these fundamentals to provide you with a custom‑fit solution for any forestry challenge.
Why iRopes’ UHMWPE Logging Rope for Sale Stands Out
Building on the basics of material choice, **iRopes** takes the next logical step: offering a rope that not only lifts more but also lasts longer under the relentless sun and abrasive forest floor. Our UHMWPE line is specifically engineered for the rigorous demands of logging. This ensures you receive a product that feels light in your hands, yet maintains its integrity when the winch is under strain.
The outer sheath incorporates a proprietary UV‑stable polymer, which absorbs up to 98% of harmful radiation. Simultaneously, the core fibres are tightly braided to resist cuts, scrapes, and occasional snags on bark. This abrasion‑resistant construction ensures the rope retains its strength even after countless passes through challenging terrain. This makes it an ideal **logging rope for sale** in tough conditions.
- Diameter Range: Available from 3/8 in to 3/4 in, covering most logging winch capacities.
- Breaking Strength: MBS values range from approximately 17,500 lb for 3/8 in up to 55,000 lb for 3/4 in, delivering superior **winch cable strength**.
- Length Options: Standard rolls of 50 ft, 100 ft, 150 ft, and custom lengths are available on demand.
If you're asking, “What is the breaking strength of a 3/8 winch cable?” the synthetic version from **iRopes** offers a clear advantage. It typically provides about ten to fifteen percent more pull capacity than its steel counterpart. This additional margin directly translates into a safer operating window, particularly when working near the limits of your winch system.
Tailored to Your Needs
**iRopes** pairs its UHMWPE core with a UV‑stable outer sheath, optional reflective strips, and a choice of end fittings such as spliced eyes, thimbles, or swaged loops. Every batch is manufactured under ISO 9001 control. This means the rope you order for sale arrives with consistent performance and documented quality, ensuring compliance for international brands.
Because our rope is available in a versatile range of diameters, lengths, and colour‑coded sleeves, you can match it precisely to the winch you already own. The combination of UV protection, an abrasion‑resistant coating, and a higher MBS makes **iRopes’** UHMWPE **logging rope for sale** the preferred choice when you need dependable **winch cable strength** without the weight penalty.
Calculating and Comparing Winch Cable Strength for Safe Logging
Building on the higher MBS advantage of **iRopes’** UHMWPE line, the next crucial step is understanding how to translate these numbers into a safe and efficient winching plan.
Minimum Breaking Strength (MBS) and Working Load Limit (WLL)
MBS stands for Minimum Breaking Strength. It represents the force at which a rope or cable will snap under a single, sudden load. Manufacturers provide this value in pounds (lb) or tonnes for each specific diameter and material.
WLL, or Working Load Limit, signifies the maximum continuous load you may apply without risking failure. The industry standard safety factor typically ranges from 5:1 to 7:1. To obtain the WLL, you divide the MBS by the chosen safety factor.
For example, if a 5/8‑inch UHMWPE rope has an MBS of 52,000 lb and you apply a 6:1 safety factor, the WLL would be approximately 8,667 lb. This figure represents the maximum pull you should ever allow the winch to exert to ensure safety.
| Diameter | Material | Minimum Breaking Strength (lb) | Working Load Limit (lb) @ 6:1 |
|---|---|---|---|
| 1/2" | Steel wire | 33,200 | 5,533 |
| 1/2" | UHMWPE synthetic | 38,400 | 6,400 |
| 5/8" | Steel wire | 45,600 | 7,600 |
| 5/8" | UHMWPE synthetic | 52,000 | 8,667 |
| 3/4" | Steel wire | 60,000 | 10,000 |
| 3/4" | UHMWPE synthetic | 68,500 | 11,416 |
Choosing the Right Winch Rope Strength
- Identify your winch’s maximum pull rating, typically found in the operator’s manual.
- Multiply that rating by 1.5–2 to establish your target safety window.
- Select a rope diameter whose WLL falls comfortably within that window, favouring UHMWPE when weight savings are crucial.
Following these three steps ensures that the line you load onto the drum will never become the weak link in your operation. For instance, if your winch is rated for 8,000 lb, a target WLL of 12,000–16,000 lb would guide you towards a 5/8‑inch UHMWPE rope (WLL ≈ 8,667 lb) or a 3/4‑inch steel cable (WLL ≈ 10,000 lb). Ultimately, the synthetic option provides the same safety margin with approximately 80% less mass to manage.
Side‑by‑Side Look: Steel vs. UHMWPE
Steel
Offers proven durability in extreme tension, but is heavy and susceptible to corrosion if not galvanised.
UHMWPE
Lightweight, UV‑stable, and provides a higher MBS per inch of diameter, thereby reducing drum strain.
Weight
Steel can add several kilograms per 100 ft, while UHMWPE adds less than one kilogram for the same length.
Safety
Synthetic ropes recoil less violently upon failure, significantly lowering injury risk if a snap occurs.
When you crunch the numbers, the choice becomes evident: the higher MBS of UHMWPE, combined with its feather‑light feel, directly translates into lower fuel consumption, smoother spooling, and a safer worksite. This makes it a superior **logging rope for sale** option for modern forestry.
Armed with understanding MBS, WLL, and a simple three‑step selection process, you can match any winch’s capacity to the optimal line. This holds true whether you opt for classic steel or move to **iRopes’** high‑performance UHMWPE solution. The next section will explore how these material choices influence real‑world logging operations and overall productivity.
Customisation & Partnership – Tailored Solutions from iRopes
After you’ve determined the rope size and confirmed the required **winch cable strength**, the next crucial step is ensuring every other detail aligns with your operation. **iRopes** approaches each order as a collaborative project, meaning the rope you receive is precisely shaped by your exact specifications rather than a generic, one‑size‑fits‑all catalogue item. This makes us a leading provider of **logging rope for sale** for wholesale partners seeking bespoke solutions.
From the core fibre to the outer sheath, you decide what goes into your line. Choose a UHMWPE blend for maximum strength‑to‑weight properties. Specify exact lengths, ranging from 50 ft rolls to 200 ft spools. And select colour‑coded sleeves that enable crew members to spot the rope at a glance. Do you need reflective strips for night work or glow‑in‑the‑dark yarn for low‑visibility sites? These specialised options are integrated into the same production run, ensuring efficient lead times for your custom **logging winch cable**.
Customisation
Build your perfect rope
Material
Choose UHMWPE, steel, or blended fibres to precisely match your strength and stretch requirements.
Colour
Select bright safety hues or opt to colour‑code sections for easy identification, enhancing operational safety.
Ends
Add spliced eyes, thimbles, hooks, or swaged loops that are specifically designed to fit your winch drum without compromise.
Assurance
Quality you can trust
Quality Control
Every batch undergoes rigorous tensile testing, backed by our ISO 9001 certification, before it leaves our factory.
IP Protection
Your proprietary design details and innovations remain confidential throughout the entire production and shipping process.
Global Shipping
We pallet‑ship directly to your location worldwide with tracked logistics and guaranteed on‑time delivery.
Because **iRopes** handles both OEM (Original Equipment Manufacturer) and ODM (Original Design Manufacturer) projects, you can even request non‑branded packaging—such as bags, colour boxes, or bulk cartons. This means the rope arrives ready to be stored or displayed under your brand name. The same production line that supplies **logging rope for sale** to our wholesale partners can be meticulously tuned to your colour palette, logo placement, and any regulatory markings you require, making us the ideal customization partner for international brands. For a deeper look at our range of custom UHMWPE solutions, see our top UHMWPE winch rope suppliers for customized solutions.
Ready to engineer a rope that fits your winch perfectly? Request a custom quote today and let **iRopes** handle the rest.
By now, you’ve seen how **iRopes’** UHMWPE winch rope delivers exceptional **winch cable strength** while eliminating the bulk of steel. This is thanks to its high‑performance coating, UV‑resistant sheath, and superior breaking load. This lightweight line not only boosts safety and fuel efficiency but also offers the customisation that makes it the preferred choice for overseas brands seeking a reliable **logging rope for sale**. Whether you require a specific diameter, colour‑coded sleeves, or specialised end fittings, our OEM/ODM service tailors every **logging winch cable** to your operation’s exact demands. Learn more about the advantages of synthetic rope over steel in our winch rope guide advantages over steel cable.
Request a Personalised Solution for Your Next Logging Project
If you would like expert advice on selecting the ideal rope or wish to receive a custom quote, simply fill in the form above. Our dedicated team will assist you in optimising performance and cost for your specific needs. For step‑by‑step instructions on replacing traditional steel cable with our UHMWPE rope, check out replace winch cable with rope – learn how with iRopes.
