10 mm braid‑on‑braid rope breaks at ≈ 3 150 kg and stretches ≤ 5 % under half‑load—industrial‑grade strength in a 0.39‑in profile.
≈ 2 min read – What you gain
- ✓ About 12 % higher load capacity than a 10 mm nylon (3 150 kg vs 2 800 kg).
- ✓ UV and heat resistance to 230 °C, with outdoor durability often exceeding 5 years.
- ✓ Custom colours, reflective or glow‑in‑the‑dark options for night‑time branding.
- ✓ Typical lead time 10–14 days (5‑day rush available) for fast project turnarounds.
Most engineers assume you need a bulkier, heavyweight rope to handle offshore winches, yet a 10 mm braid‑on‑braid line delivers a 3 150 kg break load with less than 5 % stretch—outperforming many 12 mm nylon equivalents while staying supple enough to splice on‑site. This advantage stems from iRopes’ 24‑plait cover over a 12‑strand core, a construction that reshapes how you specify strength, durability, and custom branding. Keen to see the numbers that flip the script?
10mm braid on braid rope
When you need a rope that feels solid yet stays supple, the 10 mm braid on braid rope often becomes your go‑to choice. Its construction blends a tight 24‑plait outer cover with a sturdy 12‑strand core, giving you a product that handles heavy loads without the springy give you might see in simpler designs.

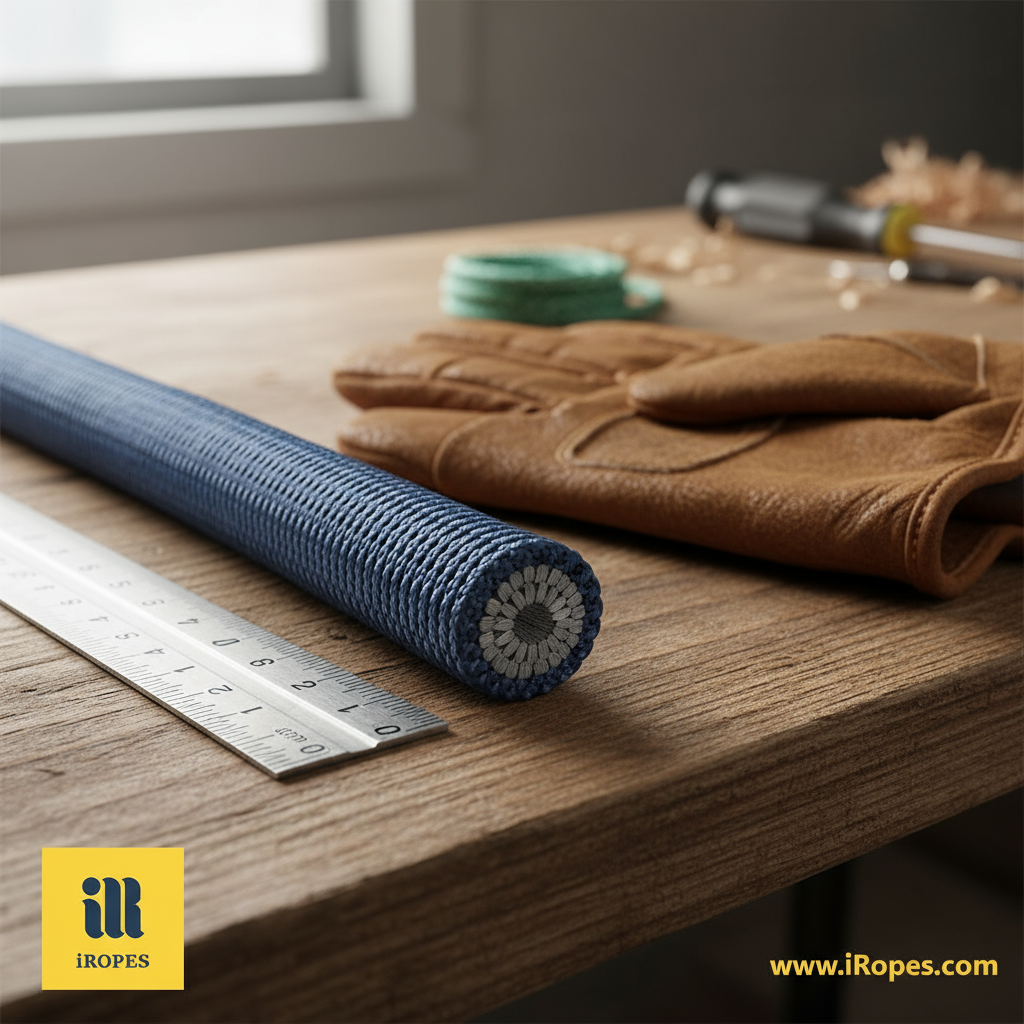

What is braid on braid rope? It is a rope where a woven outer braid—usually 24 plaits—encircles a bundled core of 12 individual strands. This layered architecture creates a low‑stretch, high‑tensile‑strength line that resists kinks and UV damage, making it ideal for demanding marine, industrial, or outdoor tasks.
- Diameter – 10 mm (0.39 in), a common size for many winch applications.
- Breaking load – Approximately 3 150 kg (6 950 lb) per ISO‑9001‑tested batches.
- Elongation – ≤ 5 % stretch at 50 % of rated load, far below typical nylon ropes.
- UV/heat rating – Stable up to 230 °C and resistant to prolonged UV exposure.
Size chart: how thick is a 10 mm rope?
- 8 mm – 0.31 in
- 10 mm – 0.39 in
- 12 mm – 0.47 in
“The 24‑plait cover over a 12‑strand core gives braid‑on‑braid ropes an excellent balance of tensile strength and low‑stretch, outperforming classic double‑braid constructions in marine environments.” – Dr. Elena Martínez, Rope‑Science PhD
Now that you see how the 10 mm braid on braid rope is built and how its dimensions translate to real‑world strength, you can start picturing where its low‑stretch, UV‑resistant profile will make the biggest difference—whether that’s on an offshore winch, a tree‑work rig, or a sailing halyard. Next, we’ll walk through the performance benefits that set this construction apart from nylon or HMPE alternatives.
braid on braid rope
Having seen how the 10 mm version feels in the hand, you’ll notice the same core‑and‑cover philosophy shines when the rope is scaled to other diameters. The layered design limits elongation, maintains strength under repeated bends, and stands up to harsh chemicals, making it a workhorse for demanding tasks.
Strongest Braid
The toughest option is an HMPE (Dyneema®) braid‑on‑braid with a 12‑strand core, delivering the highest strength‑to‑weight ratio—around 30 % lighter than polyester while carrying greater loads.

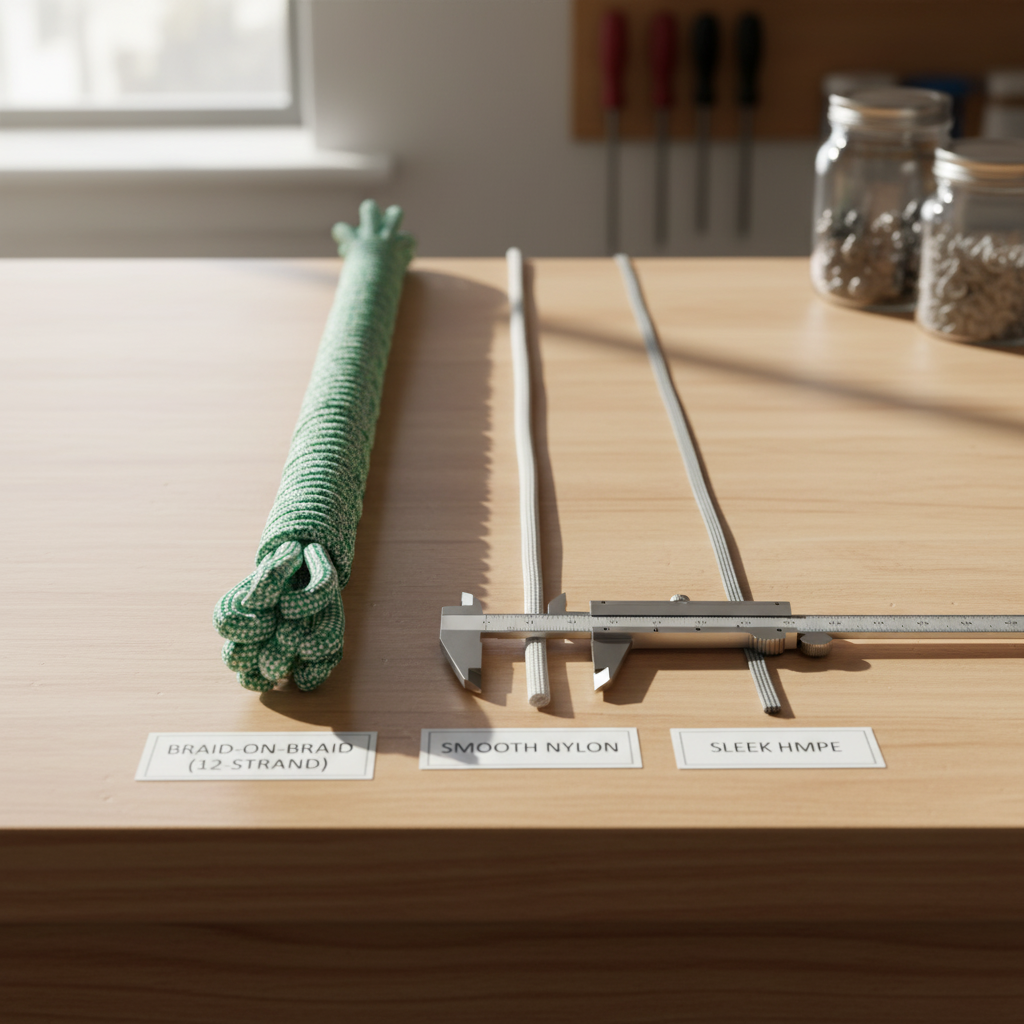

Comparison snapshot
Braid‑on‑braid: 3 150 kg break, ~5 % stretch; Nylon: 2 800 kg break, ~9 % stretch; HMPE: higher break load, ~2 % stretch, ≈ 30 % lighter.
When you feed a braid‑on‑braid line through a winch or a belay device, the rope slides smoothly because the outer plait grips evenly without snarling. Splicing follows the same logic: align the core strands, then weave the outer braid over them; a heat‑set splice retains at least 95 % of the original rating. The result is a joint that feels as solid as the parent line, and it can be done in the field with basic splicing tools.
Braid on Braid
After seeing the low‑stretch and high‑strength characteristics of the 10 mm version, you’ll notice the same core‑and‑cover philosophy across all diameters. The braid‑on‑braid construction keeps the line supple while handling heavy loads, which is why it’s a favourite in demanding environments.
Where does this versatility become most valuable? The answer lies in four key application zones that regularly demand the blend of durability and flexibility only braid‑on‑braid can provide.
Marine
Halyards, sheets, and dock lines benefit from UV resistance and the ability to run smoothly through winches without kinking.
Arboriculture
Rope‑work rigs need a rope that limits stretch under load for precise control when lifting or lowering limbs.
Industrial
Hoists, crane lines, and offshore winches rely on the rope’s predictable elongation and chemical resistance for safe operation.
Outdoor
Camping, rescue, and sailing gear benefit from the rope’s low‑stretch feel and its ability to endure harsh weather.

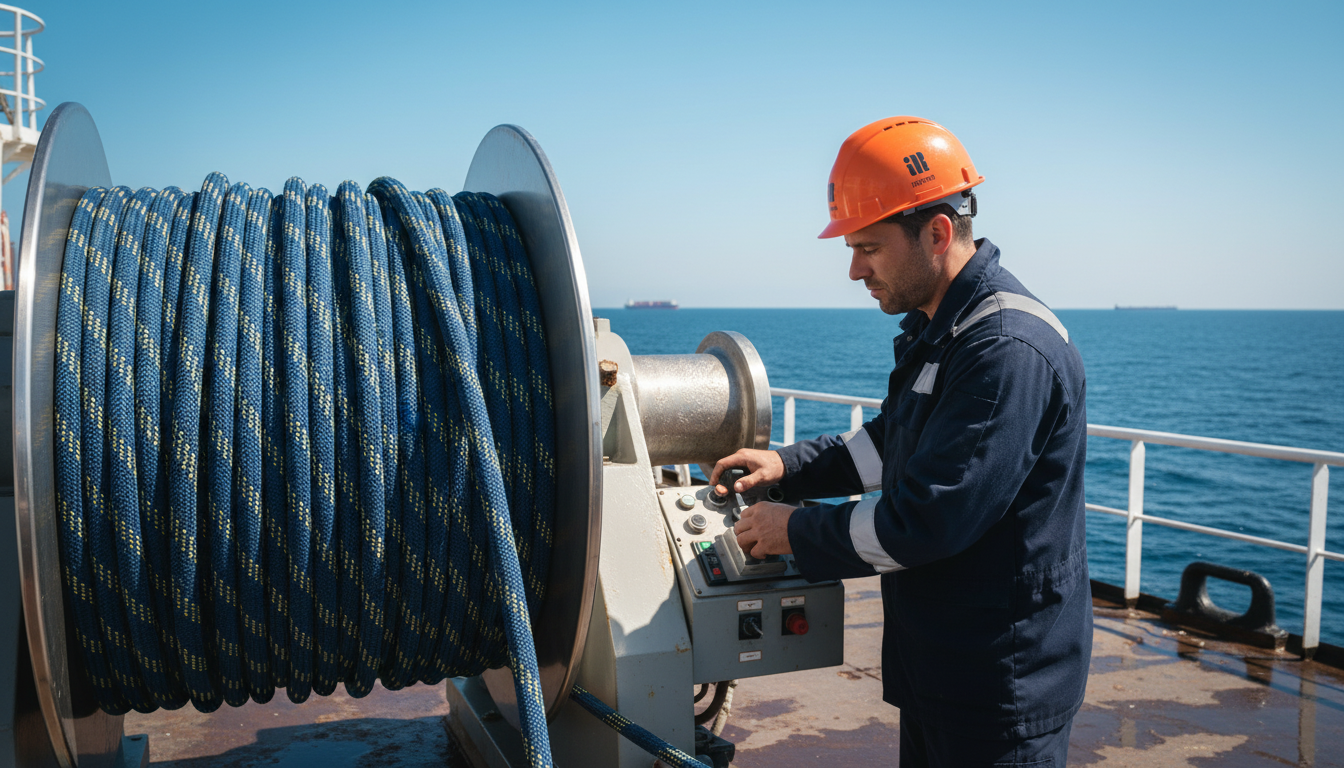

One recent project highlights how iRopes tailors the design for a specific job. A client needed a 10 mm braid‑on‑braid rope for an offshore winch that could achieve a 3 200 kg break load while staying under 5 % stretch. We engineered the custom line in two weeks, complete with ISO‑9001‑verified strength testing and a colour‑coded reel for quick identification.
Offshore Winch Project
iRopes engineered a 10 mm braid‑on‑braid rope that breaks at 3 200 kg, stretches less than 5 % under half‑load, and includes a UV‑stable coating—ideal for harsh marine conditions.
Can you splice a braid‑on‑braid rope? Absolutely. The splice starts by aligning the 12‑strand core, then the outer 24‑plait braid is woven over the joint. A heat‑set splice retains at least 95 % of the original rating, giving you a field repair that feels as strong as the parent line.
When you need a rope that matches your brand or specific performance criteria, iRopes offers extensive customisation. Choose from a range of diameters, colour palettes, and reflective or glow‑in‑the‑dark elements. Original Equipment Manufacturer (OEM) and Original Design Manufacturer (ODM) services let you add loops, thimbles, or unique terminations, and the final product can arrive in unbranded reels or with your logo on the packaging. Throughout, your IP is protected.
iRopes product range & customization
After exploring the performance edge of braid‑on‑braid ropes, it’s worth seeing how iRopes turns that engineering into a catalogue of choice. The company has already engineered 2 348 distinct braid rope models, spanning from 3‑strand to a massive 48‑strand construction. That breadth means whether you are pulling a light‑duty camping line or a heavy‑duty offshore winch, there is a baseline design ready to be tweaked.
iRopes treats every order as a partnership. Their OEM/ODM service lets you define the exact length you need—from a 5‑metre reel for a portable rescue kit to a 200‑metre drum for a permanent industrial hoist. Packaging can be a plain recycled‑plastic spool, a colour‑coded reel for quick field identification, or a fully branded box that carries your logo. Throughout the process, iRopes safeguards your intellectual property, ensuring that any proprietary colour scheme or unique termination remains yours alone.
The ordering journey is deliberately simple. Once you submit a brief, the engineering team provides a quoted lead time—typically 10–14 business days for standard runs. If a project demands speed, a rush‑track option can deliver within five days for an additional fee. Pricing follows a transparent tiered model: the per‑metre cost drops as volume climbs, with bulk discounts kicking in at 1 000‑metre increments. All quotes include a breakdown of material, labour, and any custom‑branding fees, so you never encounter hidden charges.
Standard production ships in 10–14 days; rush orders are available in 5 days on request.
To help you decide which configuration fits best, the table below summarises the two most common decision tracks. The left column highlights the customisation levers you can pull; the right column shows the streamlined ordering steps that keep your project on schedule.
Customization
Tailor‑made rope solutions
Colour & Finish
Choose from 30 solid colours, reflective strips, or glow‑in‑the‑dark fibres for night‑time visibility.
Diameter & Length
Order any diameter from 3 mm up to 48 mm, and request reels from 5 m to 250 m in one go.
Branding & Packaging
Add your logo to the reel, opt for colour‑coded spools, or ship in unbranded bulk cartons.
Ordering
Fast, transparent process
Lead‑time clarity
Typical production is 10–14 business days; a 5‑day rush track is available on request.
Ready for a customised rope solution?
You've seen how the 10mm braid on braid rope delivers low stretch, high tensile strength, and UV resistance, making it ideal for marine winches, arboriculture rigs, and industrial hoists. Combined with iRopes’ extensive OEM/ODM capabilities—including 2 348 independently designed braid rope models covering 3‑, 6‑, 8‑, 12‑, 16‑, 24‑, 32‑ and 48‑strand constructions—you can tailor diameter, colour, reflective elements, and branding to any application.
If you’d like personalised guidance to select the perfect braid on braid rope or explore custom braid on braid options for your project, simply complete the enquiry form above. Our specialists will work with you to design a solution that meets your exact performance and branding needs.
