You might assume thicker ropes mean unbreakable strength in salty seas. However, their stealthy weight—amplified by as much as 15% from saltwater absorption—can quietly undermine sling capacity. This often necessitates derates that effectively halve your safe loads at 30° angles. Have you ever wondered why that routine spearfishing hoist feels riskier than planned? Unpack the calculations, hitch adjustments, and iRopes-backed charts within this guide to expose these hidden challenges and restore confidence in every marine manoeuvre.

Understanding Rope Weight and Its Impact in Marine Environments

Imagine you're out on the water, rigging your yacht or preparing gear for a spearfishing trip. The last thing you want is a rope that's unexpectedly heavy, throwing off your balance or overstraining your setup. As we delve into why rope weight is so crucial in marine settings, let's start with the fundamentals. Rope weight is more than just a numerical value; it's a significant factor in maintaining smooth and safe operations, particularly when every kilogram makes a difference amidst waves and wind.

Rope weight is typically measured per unit length, such as kilograms per metre (kg/m), simplifying scaling for longer sections. This straightforward metric helps predict a rope's total mass before it's even deployed. Variations depend on the material and diameter. For instance, synthetic ropes like nylon or polyester are generally lighter—approximately 0.02 to 0.05 kg/m for a 12mm diameter. In contrast, steel wire ropes can reach 0.5 kg/m or more for the same size. Thicker diameters naturally increase heft; a 32mm synthetic rope might weigh twice as much as its slimmer counterpart due to the greater material volume. These differences arise because synthetics prioritise flexibility and buoyancy, while wire ropes incorporate metal for superior raw strength. Consider it akin to choosing between a lightweight backpack and a heavy toolbox—both serve their purpose, but one significantly alters ease of movement.

Why does rope weight become a concern in marine lifting? Its impact extends directly to handling – imagine wrestling a 50kg coil of rope on a rocking boat, where additional mass increases the difficulty of manoeuvring and contributes to fatigue. Shipping also becomes more complex; heavier ropes drive up freight costs and demand sturdier packaging to prevent damage during international transit. In lifting operations, such as hoisting gear from a dive boat, the rope's own weight adds to the total load on your winch or anchors. This can push systems closer to their limits than you might realise. Have you ever noticed a line feeling sluggish in the water? That's often its weight counteracting buoyancy, altering how the entire rigging system performs.

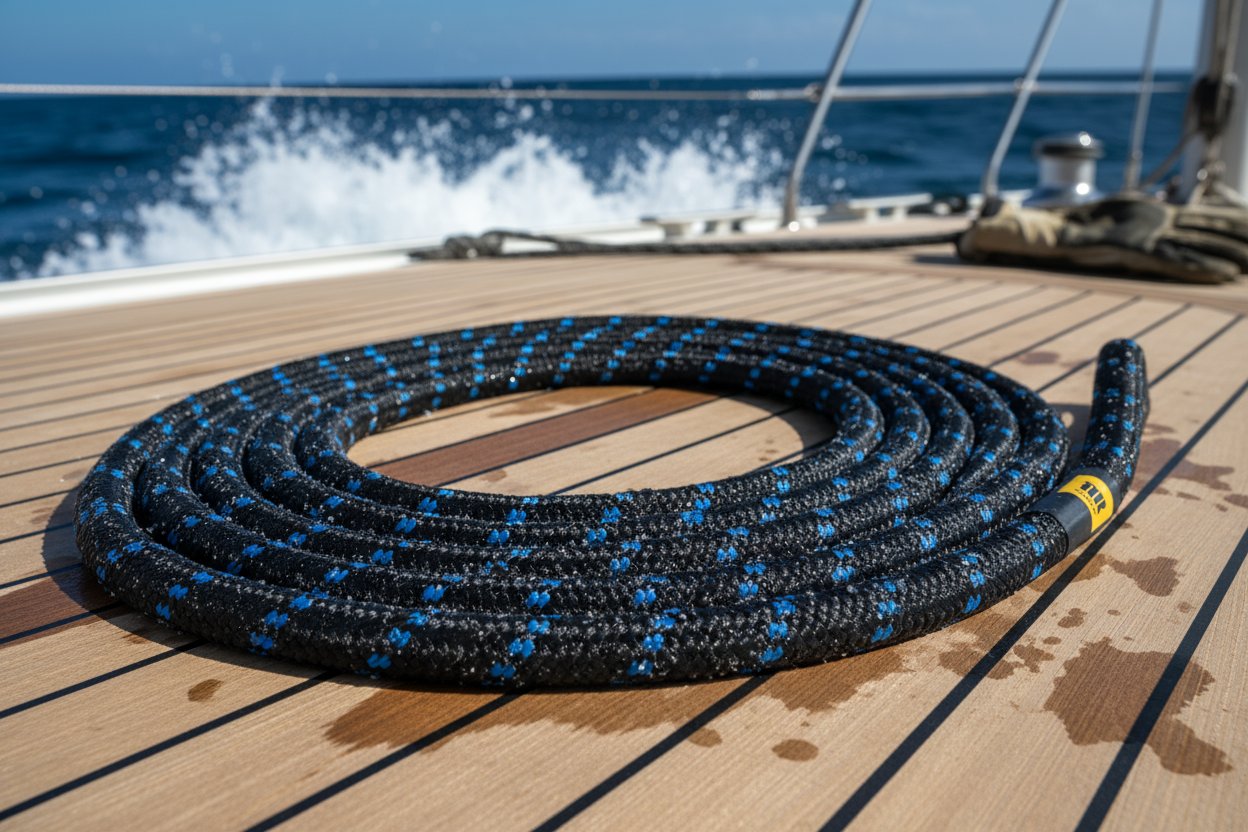

Environmental factors exacerbate these challenges, particularly moisture in yachting and spearfishing. Saltwater saturates synthetic ropes, causing them to absorb water and gain 10-20% in weight overnight. Nylon, for example, can show noticeable swelling, while polypropylene demonstrates better resistance to absorption. This additional weight not only makes retrieval more arduous but can also shift balance during lifts, increasing the risk of slips or overloads. In humid marine air, even wire ropes might experience minor corrosion buildup over time, subtly increasing their mass if not properly maintained. Monitoring these changes helps ensure your setup remains predictable.

Grasping these weight dynamics is essential for evaluating overall rope capacity, as every extra bit of mass directly influences the load you can safely handle in dynamic marine conditions.

Decoding Rope Capacity: From Breaking Strength to Working Load Limits

Having understood how rope weight can subtly affect operations in choppy marine conditions, it's timely to clarify what rope capacity genuinely means for maintaining secure lifts. In the context of yachting or handling spearfishing gear, capacity isn't merely about raw strength; it represents the intelligent limit that prevents accidents. Let's start by defining the core terms commonly used in rigging discussions.

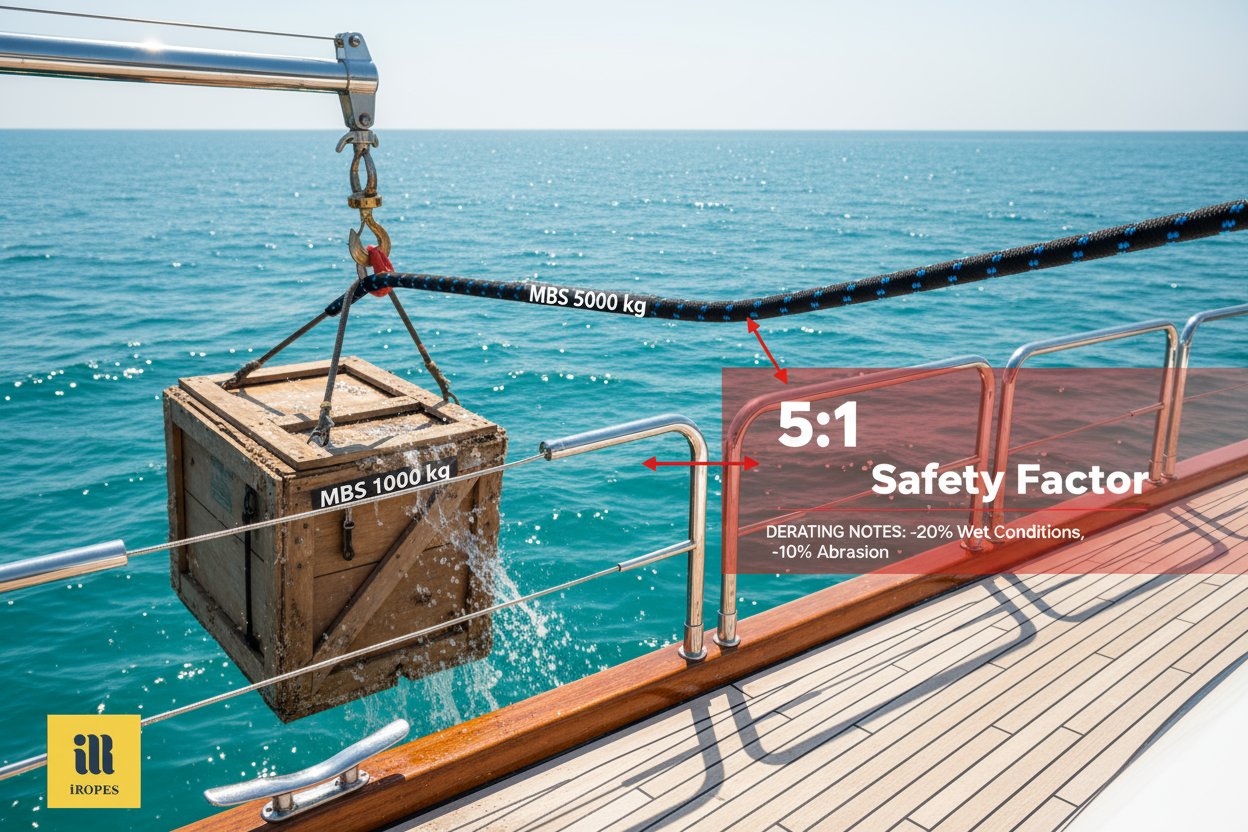

Minimum breaking strength, or MBS, is the maximum force a rope can withstand before fracturing under laboratory-tested tension. For a standard 12mm synthetic line, this might be around 5,000 kg, depending on its construction. However, it's crucial not to hoist loads right up to this limit. Instead, the safe working load (SWL) serves as the practical, everyday ceiling, typically a fraction of the MBS. This buffer accounts for unforeseen events like sudden waves. Professional riggers never push a rope to its absolute maximum, and SWL ensures predictability by directly relating back to MBS through a simple division by a safety multiplier.

This calculation addresses the critical question: how do you determine rope sling capacity? It’s simply MBS divided by the design factor, providing a safe numerical value that accounts for variables. Now, let’s consider safety and design factors. These are the protective guidelines established by organisations such as OSHA and ASME. OSHA typically mandates at least a 5:1 ratio for most slings, meaning your SWL is one-fifth of the breaking strength. This provides a safety margin against fatigue or sudden impacts. ASME delves deeper into sling standards, sometimes specifying higher factors—up to 7:1—for personnel lifts or harsh environments. Practically, this implies that a wire rope with a 25,000 kg MBS might only safely handle 5,000 kg, allowing for the unexpected jerk from a swell.

It's important not to overlook how rope weight subtly influences these equations during dynamic marine operations. The extra mass from a saturated line doesn't just increase physical exertion; it adds to the dynamic load, effectively reducing your usable capacity. Imagine hauling a heavy buoy on a bobbing deck: the rope's own weight amplifies stress on weak points, necessitating a further reduction in the SWL. In calculations, estimate the total suspended mass, including the line itself, especially for longer drops where its weight accumulates. While subtle, ignoring this in choppy waters can transform an otherwise robust setup into a liability.

With these foundational capacity elements understood, examining sling configurations will reveal further ways to ensure safe and effective marine work.

Rope Sling Capacity: Configurations, Derating, and Marine-Specific Factors

With core concepts of breaking strength and working loads understood, let's explore the real-world rigging setups that significantly influence your lifting operations on the water. In yachting or spearfishing, the method of rigging your sling isn't just about correct knotting; it concerns understanding how each configuration reduces the safe load you can reliably handle. These setups often necessitate derating—reducing—the rope's rated capacity to account for the applied stresses, preventing unforeseen issues when a wave impacts the load.

Firstly, consider the hitch types, which are the fundamental ways you secure a rope around a load. A vertical hitch is straightforward: the rope runs directly from the load to the hook, allowing full utilisation of the safe working load without penalty. However, switching to a choker hitch, where the rope cinches around the load, drops efficiency to approximately 80-90% of that full capacity. This reduction depends on how tightly it grips without causing damage to the rope or object. Then there's the basket hitch, which cradles the load in a U-shape. While excellent for stability, it effectively doubles the load on each side, so you should halve the rated capacity per leg to maintain safety. Consider slinging a heavy engine off your dive boat: a vertical setup permits maximum lift, but a choker might reduce capacity enough to warrant a re-evaluation of the operation.

Angles introduce another layer of complexity. When your sling legs are not perfectly vertical, the load shifts, imposing greater stress on the rope at sharper angles. For a 60-degree angle between legs, apply a 0.866 multiplier to the vertical capacity. At 45 degrees, the multiplier is 0.707, and for a 30-degree angle, it drops to just 0.5. Therefore, if your 12mm wire rope sling has a vertical safe working load of approximately 1,200 kg, that figure reduces to about 600 kg at a steep 30-degree sling—a critical consideration when hoisting gear from a listing boat. For a more robust 32mm version, starting from, say, 10,000 kg vertical, you would see 5,000 kg at 30 degrees. Always cross-check against your rope's specifications to prevent overloads.

Marine environments also introduce factors that gradually degrade rope sling capacity. Saltwater corrosion, for example, can compromise wire ropes, reducing their strength by up to 20% if left unaddressed. Similarly, UV rays degrade synthetics, causing fibres to become brittle after prolonged sun exposure. Heat from engine bays or tropical climates can soften materials—fibre cores lose integrity above 82°C, although independent wire rope cores (IWRC) can withstand up to 204°C. To account for these, start with the base safe working load, then implement a 10-25% derate based on exposure. For that 12mm sling in corrosive conditions, deduct 15% from your angle-adjusted figure to achieve a conservative 1,000 kg maximum. Regular rinsing and inspections can mitigate these threats, explaining why professionals in spearfishing consistently build in extra safety margins.

While these adjustments may seem intricate, they are crucial for accurate load calculations and reference charts, translating theoretical knowledge into practical reliability on the water.

Practical Load Calculations, Reference Charts, and iRopes Customisation for Marine Lifting

The derating adjustments for hitches and angles we've just discussed provide a perfect framework for calculating actual loads, transforming theoretical knowledge into practical application on deck. Whether you're rigging a yacht anchor or lifting spearfishing tanks, precise mathematical calculations ensure safer operations and fewer complications. Let's explore how to calculate rope sling capacity step-by-step, then consult some valuable reference charts for quick checks in marine environments.

Essentially, determining rope sling capacity involves beginning with the rope's minimum breaking strength (MBS)—the peak force it can withstand before failure. Divide this value by your design factor, typically 5 for most marine lifting applications under OSHA guidelines, to establish the safe working load (SWL). For instance, a 12mm wire rope with an MBS of around 12,000 kg would yield an SWL of 2,400 kg for a vertical hitch. However, incorporating a 45-degree angle requires multiplying by 0.707, reducing the SWL to approximately 1,700 kg. If a choker hitch is used, an additional 20% reduction accounts for the bend, resulting in an SWL of about 1,360 kg. This process is straightforward once broken down, but always confirm the exact MBS from your rope's tag or specification sheet—guessing is not advisable.

For quick reference in typical marine scenarios, a snapshot of capacities for wire and synthetic ropes is provided below. These are approximate figures for EIPS wire and polyester synthetics; always verify with certified charts for your specific setup. A 32mm wire rope sling might possess a vertical SWL of 28,000 kg, but this decreases to 14,000 kg at a 30-degree angle in a basket hitch. Synthetic ropes offer lighter alternatives; the same size could manage a 15,000 kg vertical SWL but with enhanced flexibility for wave action, derating similarly for angles. For specialized marine lifting, consider our UHMWPE slings that optimize strength-to-weight ratios.

When off-the-shelf ropes don't precisely meet your marine requirements—for instance, needing higher capacity without the added bulk—iRopes provides OEM and ODM services. These services allow for the customisation of everything from material blends to exact diameters. Our specialists meticulously adjust constructions to meet your precise load demands, whether you need a lightweight synthetic for spearfishing versatility or a robust wire for heavy yacht lifts. All our products are backed by ISO 9001 certification, ensuring reliable performance. We have successfully assisted clients in optimising slings to achieve exact SWL targets while simultaneously reducing unnecessary weight, thereby maintaining operational efficiency on the water. This customisation not only adheres to established standards but also enhances safety through rigorously tested, branded solutions that integrate seamlessly into your workflow. For more on enhancing marine safety and performance, explore our high-strength marine cordage options.

Understanding the hidden influence of rope weight on rope capacity and rope sling capacity is paramount for safe marine lifting in both yachting and spearfishing. From calculating weight variations due to materials and moisture to applying safety factors like 5:1 ratios under OSHA standards, this guide provides step-by-step methods and reference charts for accurate load assessments. Derating for hitch types, sling angles, and environmental stressors such as corrosion and UV exposure ensures your setups perform reliably under dynamic conditions. Furthermore, iRopes' custom OEM solutions optimise performance precisely to your specific needs.

Equipped with these insights, you are better prepared to mitigate overload risks and enhance operational efficiency on the water. For tailored advice on selecting or customising ropes that match your exact marine requirements, the inquiry form below offers a direct line to our specialists.
