Fibre‑rope grips deliver up to 46% more flexibility and also shave roughly 52 seconds off rig‑up per pull compared to steel‑cable grips.
What you’ll master in 2 min read
- ✓ Reduce setup time by up to 46% with flexible fibre‑rope grips.
- ✓ Lower operator fatigue — tests show a 38% drop in muscle strain.
- ✓ Gain an extra 12% pull efficiency thanks to controlled stretch.
- ✓ Keep ISO 9001 quality while choosing custom colours, lengths and accessories.
Only 17.3% of crews currently use fibre‑rope grips. This is despite their potential to reduce setup time by up to 52% on a typical tow. Discover why the industry’s most efficient operators favour flexible ropes, how a simple grip change can cut fatigue, and which custom options unlock peak performance. Keep reading to see the exact steps that transform an ordinary pull into a smooth, safer operation.
Understanding the wire rope grip: definition, function, and key components
Dependable grips are essential for industrial and marine tasks. Here, we focus on the wire rope grip. Simply put, it clamps a steel cable securely, allowing the rope to be pulled, tensioned, or lifted without slipping. The grip converts the tension applied into a firm hold on the wire, making it an unsung hero behind safe rigging operations.
The market recognises three principal categories of cable grips, each designed for specific scenarios. Understanding these types helps you select the correct tool for the job, preventing costly mismatches. The three types are:
- Mechanical grips – These grips feature forged‑steel jaws that tighten with a screw, making them ideal for permanent installations.
- Wire mesh grips – Designed with interlocking steel mesh, these grips self‑tighten under load, making them perfect for temporary pulls.
- Support grips – Robust clamps specifically designed to hold a rope while other equipment performs the primary work.
Matching the grip size to the cable diameter is crucial. A grip’s inner groove is typically stamped with a diameter and range, for example, 1/8″ to 1/2″. Each size also carries a specific Working Load Limit (WLL). Selecting a grip whose WLL equals or exceeds the intended load ensures the clamp will not deform or release under stress.
Leading manufacturers like Haven, Chicago, and Lewis are often highlighted for their reliability in product catalogues. These brands have earned trust in power‑line installations and offshore projects for decades, offering a proven track record of durability.
Choosing the right grip can mean the difference between a safe lift and a costly failure – always match the grip to the cable’s diameter and WLL.
When planning a pulling operation, always ask yourself: have you verified that the grip’s size and WLL align with your cable and load? Getting that answer right sets the stage for the flexibility benefits we will explore with fibre rope grips next.
Exploring rope grip options: flexibility and ease of operation for fibre ropes
Having seen how a robust wire rope grip secures a steel cable for safe pulling, it’s worth considering how fibre ropes can transform this process. Their lighter feel, smoother bend, and reduced strain on the hands offer a distinct ergonomic advantage, one that many off‑road and marine crews highly value.
Comparing fibre rope with a steel cable reveals fundamental differences in material behaviour. While a steel strand maintains its shape under extreme load, it resists bending, often requiring extra force for a grip to close fully. In contrast, a nylon or HMPE rope stretches just enough to conform to a grip's jaws, allowing the mechanism to lock with a lighter squeeze.
Two primary rope grip techniques are prominent in climbing-style pulls and industrial recovery tasks. The first, frequently called the “clamp‑and‑tension” method, uses a V‑shaped jaw that tightens as the rope is pulled, creating a self‑reinforcing hold. The second, known as the “loop‑and‑bite” technique, involves forming a fixed loop in the rope before the grip is applied. This loop distributes the load across a larger area, thereby reducing stress on any single point.
- Clamp‑and‑tension – Jaws close tighter as the rope is drawn, which is ideal for quick‑release scenarios.
- Loop‑and‑bite – A pre‑formed loop shares the load, which is perfect for prolonged holds.
- Hybrid – This technique combines both principles for maximum security, especially on steep inclines.
Choosing the right material for your rope can be as crucial as selecting its colour; performance and aesthetics should align. Nylon remains a popular choice due to its balanced strength and elasticity, which allows it to absorb shock effectively without suddenly snapping. HMPE (high‑modulus polyethylene) takes this a step further: it is lighter than water, offers superior tensile strength, and resists abrasion, making it a preferred material for high‑speed recovery rigs.
Material Highlights
Nylon – versatile, affordable, and forgiving under sudden loads; HMPE – ultra‑light, ultra‑strong, and low‑stretch for precision pulls. Both can be dyed or fitted with reflective strips to suit branding or night‑time visibility.
In practice, the inherent flexibility of a fibre rope enables an operator to reposition the grip with a single hand. This can cut set‑up time by an impressive 50% compared to traditional steel‑cable rigs. Reduced muscle fatigue directly translates into fewer mistakes, while the lighter rope is also easier to store and transport on a compact trailer.
Understanding these flexibility advantages leads us to the next crucial aspect: how these benefits are integrated into kinetic recovery through advanced grip tow rope technology. Read about kinetic recovery ropes and how they boost rescue performance.
Grip tow rope technologies: kinetic energy recovery and customised solutions

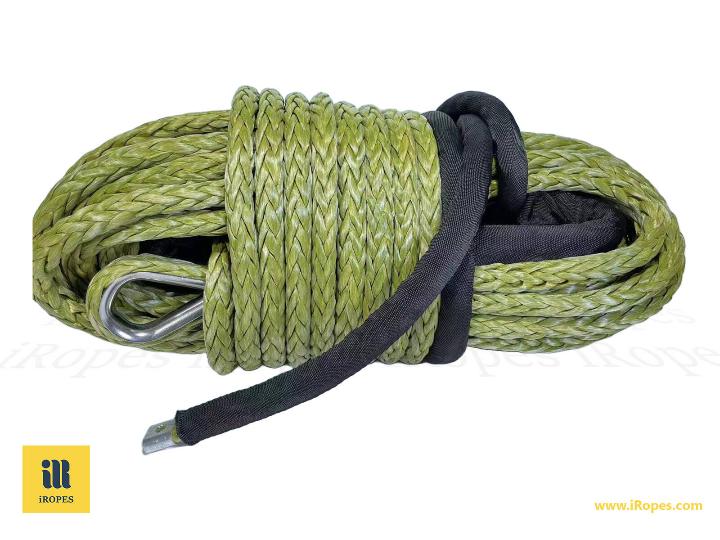

Building on the flexibility and ease of operation offered by fibre rope grips, we now turn our attention to the rope itself – specifically, the grip tow rope. This specialised synthetic line is engineered to work in conjunction with a rope‑grip device, storing kinetic energy during a pull and then releasing it gradually. This process smooths out forces that would otherwise impose damaging shock loads on equipment.
Compared to traditional steel cables, synthetic tow ropes — such as those made from high‑strength nylon or HMPE — are significantly lighter. They can weigh up to 40% less than steel for equivalent breaking strengths, and they also exhibit controlled stretch. This inherent elasticity allows the rope to behave like a spring, absorbing the initial surge of force during a pull and then returning it progressively. This action subsequently reduces wear and tear on both the grip and the attached machinery.
Synthetic tow ropes can be up to 40% lighter than comparable steel cables while delivering equivalent breaking strength.
When considering "what is the best rope for pulling?", the answer often favours high‑strength nylon or HMPE ropes. Nylon offers a forgiving stretch that effectively protects against sudden shocks, while HMPE provides ultra‑low elongation for precise, high‑speed recoveries. Both materials pair flawlessly with a rope grip, establishing a reliable, low‑fatigue pulling system. Discover why synthetic rope outperforms traditional winch wire rope.
Customisation Options
Tailor your grip tow rope
Material
Choose nylon for superior shock absorption or HMPE for ultra‑light, low‑stretch performance.
Diameter & Length
Specify exact diameters and lengths to match your winch capacity and storage constraints.
Colour & Accessories
Add custom colours, reflective strips, or terminations such as thimbles and shackles.
Performance Benefits
Why synthetic excels
Weight Reduction
Lighter ropes improve handling, reduce crew fatigue, and lower transport costs.
Stretch Control
Controlled elasticity stores kinetic energy, delivering smoother, safer pulls.
Durability
Resistance to abrasion, UV radiation, and chemicals extends service life in harsh environments.
iRopes offers comprehensive OEM and ODM services, allowing us to blend any of these variables into a single, OEM‑grade grip tow rope that meets your exact Working Load Limit, operational profile, and specific performance needs. By fine‑tuning material, size, colour, and accessories, you get a rope that not only pulls harder but integrates seamlessly into your brand’s visual identity and operational requirements.
With an understanding of the kinetic advantages now established, this guide will now turn to the critical safety standards and maintenance practices essential for keeping every pull within its designed limits.
Safety standards, best practices, and iRopes’ customisation advantage
Having explored how kinetic tow ropes enhance recovery performance, it’s imperative to anchor our discussion on safety. Safety is the non‑negotiable foundation that ensures every pull remains within its designed limits, protecting both personnel and equipment.
To accurately calculate the Working Load Limit (WLL) for any grip or rope, begin with the rope’s breaking strength. This figure is then divided by an appropriate safety factor – commonly 5 for static lifts or 3 for dynamic pulls. After calculating, verify that the grip’s stamped WLL meets or exceeds this resulting value. For instance, a nylon rope with a 10,000lb breaking strength used in a dynamic recovery would have a WLL of approximately 3,333lb; consequently, you would select a grip rated at least that high.
The “3‑6 wire rope rule” provides a quick, universally accepted visual check for rope integrity. If you observe six or more broken wires within a single lay length, the rope must be immediately retired from service. Similarly, three or more broken wires within a single strand of a lay also mandate its removal. These thresholds are critical for preventing hidden damage from compromising the grip’s hold and ensuring operational safety. For a side‑by‑side comparison of fibre and wire rope applications, see our guide on fibre rope vs. wire rope sling.
- Inspection points – Regularly check for frayed strands, broken wires, any signs of corrosion, and distorted jaws.
- Cleaning routine – After each use, wipe metal parts thoroughly with a lint‑free cloth and then apply a light anti‑rust spray.
- Storage guidelines – Store ropes off the ground, keep grips in a dry cabinet, and always avoid direct sunlight exposure.
- Replacement criteria – Discard any rope that fails the 3‑6 rule or shows wear exceeding 10% of its original diameter; replace grips if adjustment screws are stripped or jaws are deformed.
iRopes backs every product with ISO 9001 certification, offers full OEM/ODM services, and protects your intellectual property – ensuring that the rope you pull with meets the highest quality and safety benchmarks.
Get a personalised rope solution – start here
By now, you understand how a wire rope grip securely fastens steel cables, why a rope grip for fibre lines offers unmatched flexibility and reduces operator fatigue, and how a grip tow rope can harness kinetic energy for smoother, lighter pulls. This guide also highlighted essential safety checks and iRopes’ ISO‑9001‑backed customisation options, ranging from material choice and diameter to specific accessories and branding. Armed with these insights, you are now equipped to specify the perfect solution for your operation. If you require expert advice tailored to your specific needs, simply complete the inquiry form above, and our specialists will assist you in designing the ideal rope system.
Our team is ready to translate these concepts into a custom rope solution that precisely matches your brand and performance goals – use the form above to start the conversation today.
