Upgrade your low‑mount winch with iRopes’ 10 mm synthetic rope and gain up to 30 % faster pull‑in in field use while cutting rope weight by ≈ 70 % (≈ 12 kg / 100 m vs ≈ 38.1 kg / 100 m).
7‑minute read – What you’ll unlock
- ✓ 30 % quicker winch recovery thanks to a lighter, high‑strength line.
- ✓ Up to 70 % weight reduction versus steel cable (≈ 12 kg / 100 m vs ≈ 38.1 kg / 100 m).
- ✓ 2.4 t basket‑hitch working load limit with a safety factor ×5.
- ✓ Custom OEM colours, reflective strands and IP‑protected branding with typical 7–10 working‑day lead times.
You’ve probably been winding the same heavy steel cable on your low‑mount winch, assuming it’s the only option. What if a 10 mm synthetic rope could shave 30 % off pull time and slash rope weight by nearly three‑quarters, without giving up the typical 2.4 t basket‑hitch WLL associated with 10 mm wire rope? In the sections ahead, we’ll explain how iRopes engineers that performance lift, the construction details that make it possible, and how you can customise it for your brand.
Understanding the anchor rope 10mm – specifications and key benefits
Built tough, iRopes’ 10 mm winch rope is designed to suit those with low‑mount winches looking to upgrade performance. Before we get to winching, it’s worth setting the anchor basics. Whether you’re securing a boat, recovering an off‑road vehicle, or setting up a rescue line, choosing the right anchor rope 10mm is the difference between confidence and caution.
The anchor rope 10mm is a versatile, 10 mm‑diameter line used for anchoring and recovery. It fits most standard winch drums and can be spliced or fitted with loops for custom rigging. Because the diameter balances strength and handling, it’s a favourite among professionals who need reliable grip without excessive bulk.
When it comes to load capacity, typical 10 mm wire‑rope slings provide a vertical‑hitch working load limit (WLL) of 1.2 t and a basket‑hitch WLL of 2.4 t, based on a safety factor of ×5. Always confirm the exact WLL on your product label and follow relevant standards for your application.
Breaking strength indicates where a rope will ultimately fail. A typical 10 mm galvanised steel wire rope in 7×19 construction breaks at about ≈ 6 530 kg (≈ 64 kN), while a 10 mm synthetic UHMWPE/Dyneema rope reaches around ≈ 11 300 kg. The synthetic option not only offers a higher strength‑to‑weight ratio but also sheds weight, reducing strain on winch motors.
- Steel – traditional galvanised wire, high breaking load and good crush resistance; heavier to handle.
- Synthetic (UHMWPE/Dyneema) – lighter, superior strength‑to‑weight ratio, corrosion‑resistant for marine use.
- Coated variants – PVC or PE sheaths improve abrasion resistance and UV durability.
Choosing between steel and synthetic depends on your environment. Steel shines where spooling crush and sharp edges are a concern and cost is a priority, while synthetic excels where weight, flexibility, and corrosion resistance matter most—such as offshore anchoring or long‑range recovery.
“Synthetic fibres such as UHMWPE give a higher strength‑to‑weight ratio than steel, but they must be protected from abrasion and UV exposure to retain longevity,” notes Dr. Markus L., Rope Engineer, VDI.
With the load‑capacity numbers and material options clear, you can match the anchor rope 10mm to the demands of your project—whether it’s a rugged off‑road pull or a steady marine hold.
Next, we’ll see how that same 10 mm rope transforms low‑mount winch performance, delivering smoother operation and higher safety on the trail.
Why the 10mm winch rope is ideal for low‑mount winches
Building on the anchor‑rope strengths above, the 10 mm winch rope brings the same durability to compact winch setups. When the drum sits low on a vehicle chassis, every gram saved and every millimetre of clearance matters.
Compatibility is straightforward: a drum diameter of at least 200 mm (roughly 20 × rope diameter) provides enough wrap to meet the recommended 4–5 turns for safe operation. Always spool under light tension and keep layers tight to avoid uneven loading.
In practice, the performance upgrade is noticeable. The synthetic construction cuts the rope’s mass by more than half compared with a steel equivalent, so the winch motor works against less inertia and recovers faster. Its lower mass also stores less kinetic energy, which reduces recoil risk and delivers a smoother, more controlled pull.
Addressing a common question – “Is winch rope as strong as cable?” – the answer is yes. Modern 10 mm synthetic winch ropes deliver comparable or higher breaking loads than steel cable of the same diameter, while remaining significantly lighter and easier to handle.
- Feed the rope through the fairlead and attach it to the drum anchor point as specified by the winch manufacturer.
- Maintain at least 4–5 wraps on the drum at all times, then wind evenly under light tension to bed the rope.
- Fit the thimble or loop, and test a short pull to confirm smooth spooling and even tension.
Key Benefits
Designed for low‑mount winches, this rope fits drums ≥ 200 mm, cuts weight by up to 70 %, and offers a breaking load that rivals steel cable – all while reducing recoil for safer, smoother pulls.
With the compatibility checklist, performance boost, and quick‑thread guide now clear, the next step is to look at the internal construction that makes the 10 mm wire rope so reliable for demanding pulls.
Technical insights into the 10mm wire rope construction
Now that we’ve explored how internal build drives performance, it’s time to unpack the wire rope itself. Understanding the construction helps you decide whether a 10 mm winch rope or a steel anchor rope 10mm best fits your project.
The most common build is a 7×19 layout: seven strands wrapped around a central core, each strand containing nineteen steel wires. This pattern strikes a balance between flexibility and load‑bearing capacity, which is why many low‑mount winches favour it. A 6×37 arrangement uses more, thinner wires for greater flexibility and improved fatigue resistance, while variations in core—parallel steel versus fibre—alter stretch characteristics and crush resistance.
How thick is winch rope wire? A standard 10 mm (≈ 3/8″) diameter is the sweet spot for 8–12 k lb winches, delivering enough strength without over‑filling a compact drum. Weight matters too: a steel 10 mm rope weighs roughly ≈ 38.1 kg per 100 m, whereas a synthetic counterpart drops to about ≈ 12 kg for the same length. The lighter profile reduces the winch motor’s load, enabling quicker recoveries.
Construction Types
How they affect performance
7×19
Balanced flexibility, ideal for winches needing smooth spooling.
6×37
More wires per strand give extra flexibility and fatigue resistance.
Core Variants
Parallel or fibre cores change stretch and crush resistance.
Standards & Safety
Compliance you can trust
ISO 9001
Quality management ensures consistent batch testing.
DIN EN 13414
Defines steel‑sling dimensions, load testing and safety factors.
Safety ×5
Recommended factor for winch and anchor applications.
Steel wire‑rope slings are rated to DIN EN 13414, and iRopes operates an ISO 9001‑certified quality system. For synthetic ropes, we test to relevant industry standards and advise a safety factor of ×5 for winch and anchor work. The quoted WLLs include a clear margin, giving you confidence whether you’re pulling a stuck 4×4 or anchoring a boat.
Match your drum diameter to at least 20 times the rope diameter (≈ 200 mm for a 10 mm rope) to achieve proper winding and prevent premature wear.
With the construction details laid out, iRopes can tailor each 10 mm solution—whether you need a bright‑coloured synthetic 10 mm winch rope (stronger, safer 10 mm winch cable), a steel anchor rope 10mm with your branding, or a specialised core—to your project requirements.
Customizing your 10mm rope solution with iRopes
Now that you know iRopes can shape a 10 mm rope to match winch or anchor needs, let’s look at how you can make that line truly yours – from colour to packaging, and everything in between.

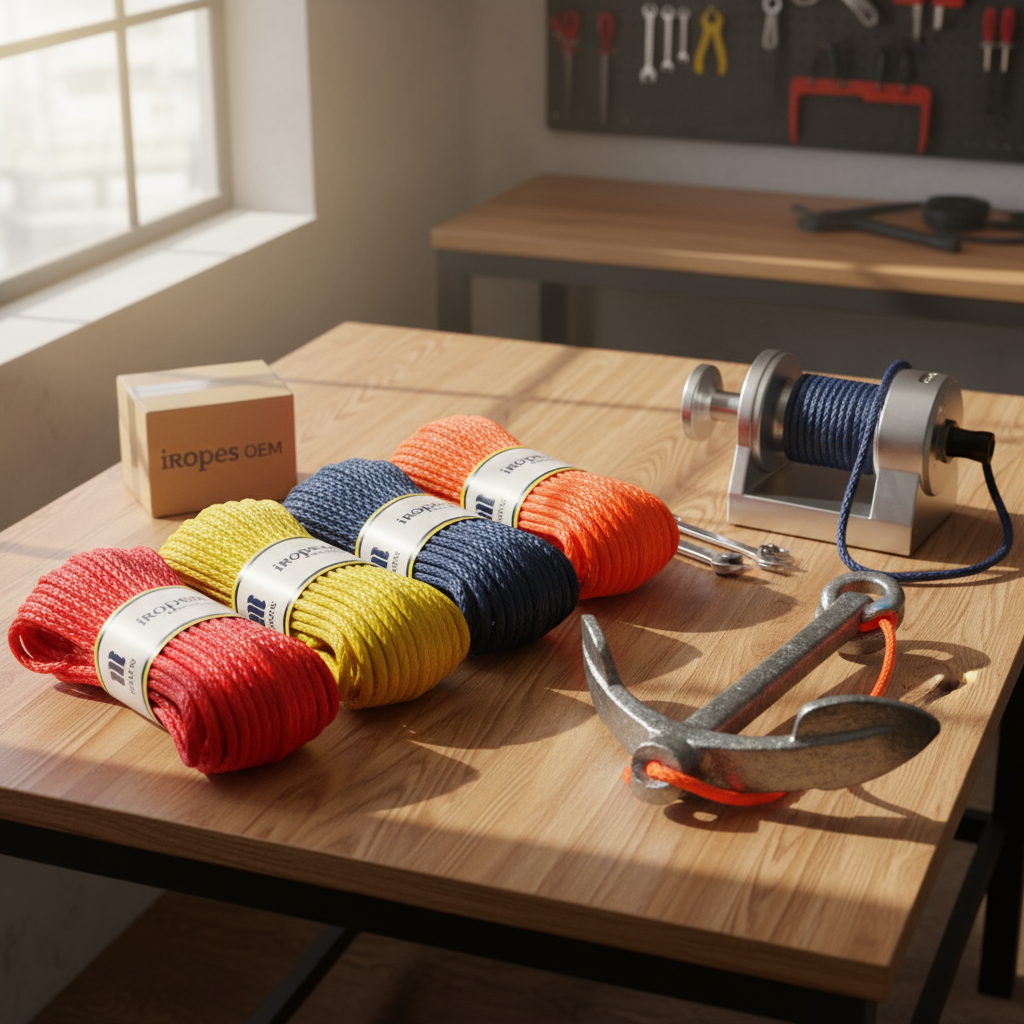

Custom Colours & Patterns
Choose any shade from subtle neutrals to high‑visibility neons; add branding graphics or reflective tracers that stay bright even after harsh UV exposure.
Reflective Strands & Branding
We can embed reflective fibres and incorporate branding via tracer yarns, printed labels, or heat‑shrink sleeves at the terminations for a safety‑first, on‑brand product.
IP‑Protected Designs
All custom drawings are secured under strict IP protection, so your proprietary colourways and logos stay exclusive to your market.
Tailored Packaging
Pick from sealed bags, colour‑printed boxes, or bulk cartons – each option can carry your logo, safety data sheets, and handling instructions.
Order in Minutes
Select length, add loops or thimbles, see lead‑time estimates instantly, and let us ship worldwide from our ISO 9001‑certified facility.
When you place an order, simply tell us the required metres, choose any accessories such as eye‑splices or thimble fittings, and we’ll confirm the production schedule – usually within 7–10 working days for standard runs. Our logistics team coordinates pallet‑level shipping to your location worldwide, so you receive the rope ready to roll onto the drum.
Quick FAQ recap: the 10 mm winch rope fits drums ≥ 200 mm, the synthetic 10 mm winch rope offers a higher strength‑to‑weight ratio than steel, and the standard thickness for mid‑range loads is about 10 mm (≈ 3/8″). If you still have questions, the answer is just a click away.
Ready to see your logo run along a high‑performance line? Request a quote for your customised 10 mm rope upgrade today and let iRopes turn a simple rope into a brand statement. Discover the best synthetic winch rope and coating benefits.
Ready for a Custom 10 mm Rope? Get Personal Advice Below
By now you’ve seen how a 10 mm wire rope delivers a solid 1.2 t vertical‑hitch WLL and how its steel and synthetic options affect weight and durability. The 10 mm winch rope, built tough for low‑mount winches, cuts weight by up to 70 % while matching or exceeding the breaking load of a comparable 10 mm wire rope. With ISO 9001 quality, custom colours, reflective strands and IP‑protected branding, iRopes turns a simple line into a performance‑enhancing, on‑brand component.
If you’d like a personalised specification or branding solution, simply use the enquiry form above and our rope specialists will help you fine‑tune the perfect 10 mm line for your application, including guidance on synthetic winch rope eye splice techniques.
